  11. Swivel Plate Caster, TPR, 3 in., 165 lb.
Zoro Select Swivel Plate Caster, TPR, 3 in., 165 lb. P14SX-RP030K-12-AM - main

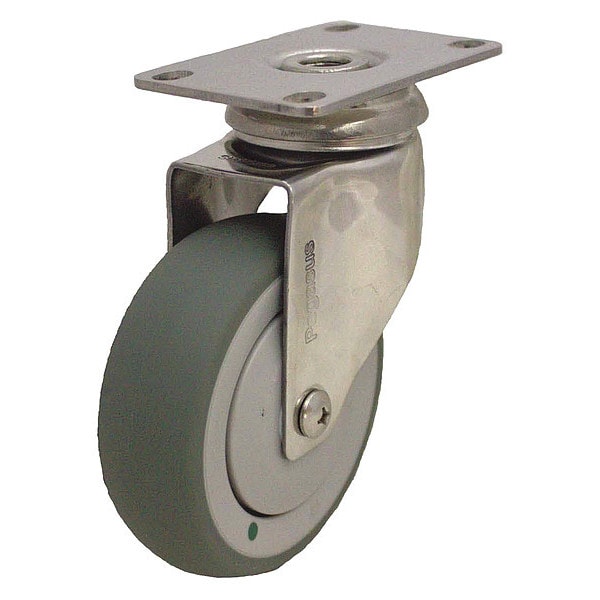

Swivel Plate Caster, TPR, 3 in., 165 lb.

  • Mfr # P14SX-RP030K-12-AM

  • Zoro # G0541563

product price: $31.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P14SX-RP030K-12-AM
Zoro #
G0541563
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
4 7/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
4-7/16in
Swivel Radius
2-15/16 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Length
3.063 in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Mounting Plate Length
2 1/2 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
165 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Polished
Includes
Thread Guards, Anti-Microbial Tread
Standards
RoHS, ICWM
Features
Anti-Microbial, Corrosion Resistance, Floor Protection, Noise Reduction
Caster Brake Included
No
Thread Guards
Yes
Application
Retail, Industrial, Commercial
Wheel Color
Gray
Caster Temp. Range Available
Yes
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Replacement Wheel
Mfr. No. P-RP-030x013/031K
Tread
Standard
Tread Color
Gray
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Operating Temperature Range
-30 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Includes Thread Guards
Yes
Load Rating Range
Light-Duty
Series
P14X Series
ESD Conductive
No
Load Capacity
165 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Features
Antimicrobial, Corrosion-Resistant
Load Capacity - Maximum
165 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
210 Degrees F

Description

Swivel, Plate Caster, Load Rating 165 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
