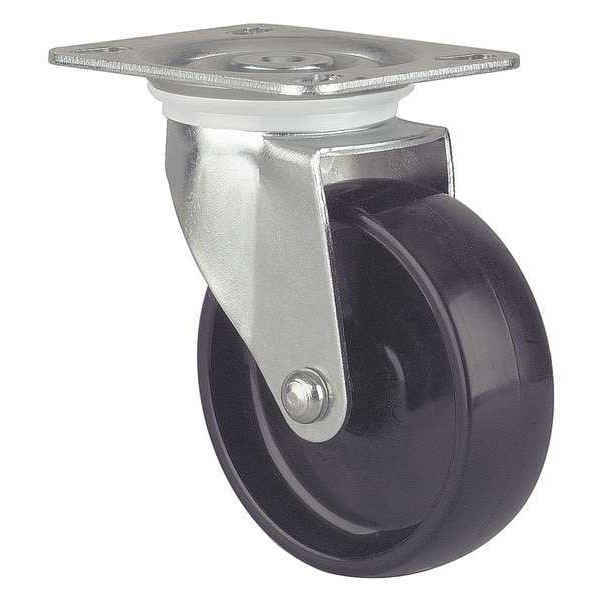

Zoro Select Plate Caster, Swivel, Nyln, 5 in, 330 lb, Blk TSSV 125 BN0S - main

Plate Caster, Swivel, Nyln, 5 in, 330 lb, Blk

  • Mfr # TSSV 125 BN0S

  • Zoro # G4396682

product price:  $17.19
/ea

Key Features

Overall Height
6in
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Mounting Bolt Dia.
5/16 in
Core Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSSV 125 BN0S
Zoro #
G4396682
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Height
6in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Wheel Dia.
5 in
Stem Dia.
No Stem
Mounting Plate Size
3 1/8 in x 4 in
Mounting Height
6 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
1/8 in
Mounting Plate Length
4 in
Overall Wheel Width
35 mm
For Axle Dia.
8 mm
Mounting Plate Width
3 1/8 in
Outside Slot Spacing - Width
2.375 in
Outside Slot Spacing - Length
3.188 in
Inside Slot Spacing - Length
3 in

Details

Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Core Color
Black
Caster Stem Type
No Stem/Plate Included
Wheel Color
Black
Caster Brake Included
No
Frame Finish
Zinc Plated
Item
Plate Caster
Extended Lead
No
Non-Marking
Yes
Application
General Purpose
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Thread Guards
No
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Temp. Range Available
Yes
Load Rating
330 lb
Caster Sub-Type
Swivel
Standards
ANSI ICWM
Caster Brake Type
No Brake
System of Measurement
Inch
Includes Thread Guards
No
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel Core Material
Nylon
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
330 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Ceramic, Tile, Vinyl, Wood
Operating Temperature Range
14 Degrees to 104 Degrees F
Operating Temperature - Maximum
100 Degrees F
Operating Temperature - Minimum
15 Degrees F

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
