  11. Swivel Plate Caster w/2-Position Directional Lock, 275 lb
Zoro Select Swivel Plate Caster w/2-Position Directional Lock, 275 lb P17S-RP040K-12-DL-001 - main

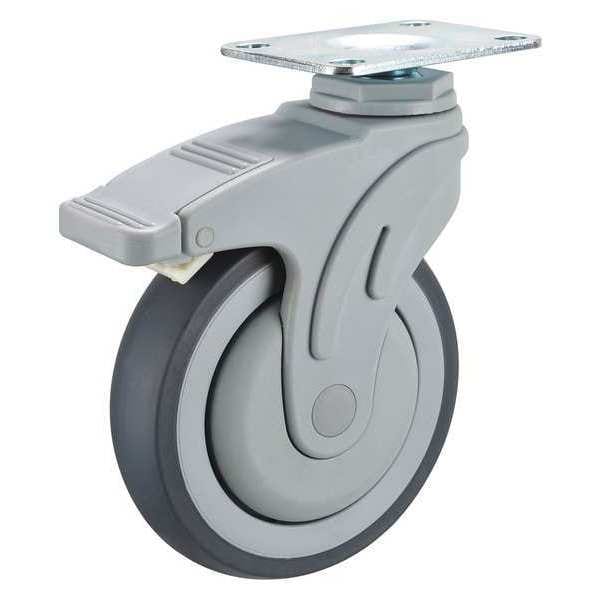

Swivel Plate Caster w/2-Position Directional Lock, 275 lb

  • Mfr # P17S-RP040K-12-DL-001

  • Zoro # G2808906

product price: $17.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Directional Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP040K-12-DL-001
Zoro #
G2808906
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 13/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/4in
Stem Dia.
No Stem
Swivel Radius
3-5/16 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Length
3.063 in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster with Four Position Swivel Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Directional Lock
Load Rating
190 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Nylon
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Frame Finish
Natural Light Gray
Wheel Color
Gray
Thread Guards
Yes
Extended Lead
No
Includes
Thread Guards, 4-Position Directional Lock
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Tread
Standard
Tread Color
Gray
Swivel Lock Type
Directional Lock
Load Rating Range
Light-Duty
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Wheel Core Material
Polypropylene
Includes Thread Guards
Yes
Swivel Raceway Type
Precision Ball
ESD Conductive
No
Load Capacity
190 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P17 Series
Load Capacity - Maximum
190 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Brake Location
Rear
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 190 lb, Swivel Lock Type Directional Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
