  6. Swivel Plate Caster w/Total-Lock, TPR, 6 in, 260 lb

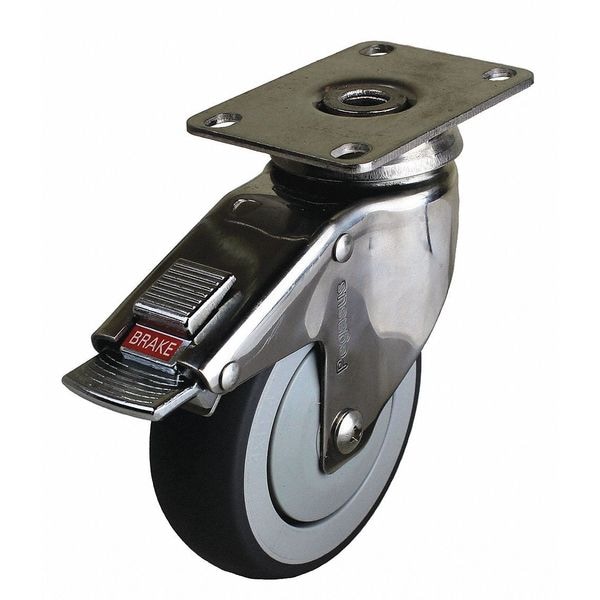

Zoro Select Swivel Plate Caster w/Total-Lock, TPR, 6 in, 260 lb P14S-RP060K-12-TB - main
Shop ZORO SELECT

Swivel Plate Caster w/Total-Lock, TPR, 6 in, 260 lb

  • Mfr # P14S-RP060K-12-TB

  • Zoro # G1957882

product price:  $28.65
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P14S-RP060K-12-TB
Zoro #
G1957882
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Height
7 7/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
7-13/32in
Stem Dia.
No Stem
Swivel Radius
4-5/8 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
8 mm
Mounting Plate Length
2 1/2 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Load Rating
240 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Standards
ANSI ICWM
Caster Stem Type
No Stem/Plate Included
Wheel Color
Gray
Application
Case Carts, Food Service, Hospital Equipment, Institutional Equipment, Medical Equipment, Store Fixtures, Utility Carts
Thread Guards
Yes
Extended Lead
No
Includes
Complete Caster with Total Lock
Caster Temp. Range Available
Yes
Frame Finish
Chrome
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. P-RP-060x013/031K
Tread Color
Gray
Tread
Standard
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Wheel Core Material
Polypropylene
Swivel Lock Type
Total Lock
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Duty
ESD Conductive
No
Load Capacity
240 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P14 Series
Load Capacity - Maximum
240 lb
Brake Location
Rear
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Swivel, Plate Caster, Load Rating 240 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
