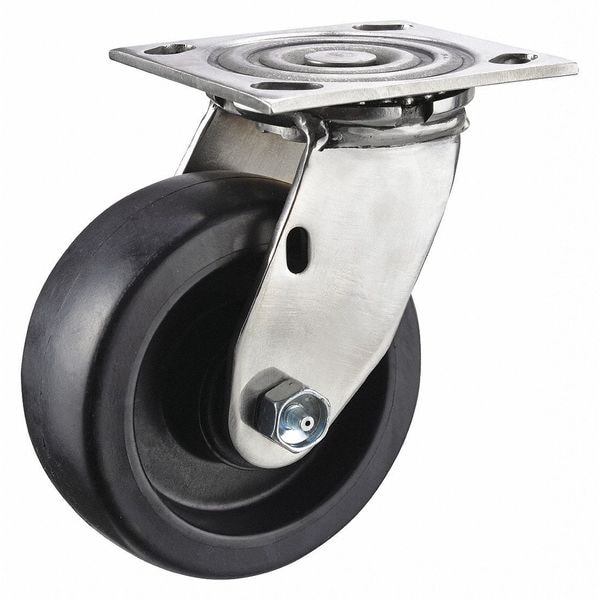

Zoro Select Swivel Plate Cstr, 550 lb, Stainless Steel P21SX-PB050R-14 - main

Swivel Plate Cstr, 550 lb, Stainless Steel

  • Mfr # P21SX-PB050R-14

  • Zoro # G6449021

product price:  $105.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Wheel Color
Black
Caster Plate Hole Pattern
B
Wheel Dia.
5 in
Load Rating
550 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21SX-PB050R-14
Zoro #
G6449021
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Overall Height
6-1/2in
Stem Dia.
No Stem
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
6 1/2 in
Swivel Radius
4-3/16 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in

Details

Non-Marking
Yes
Wheel Color
Black
Item
Swivel Caster
Caster Plate Hole Pattern
B
Load Rating
550 lb
Core Color
Black
Thread Guards
No
Includes
Complete Caster
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Polished
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Caster Frame Material
Stainless Steel
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Extended Lead
No
Caster Brake Included
No
Tread Color
Black
System of Measurement
Inch
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. P-PB-050x020/050R
Tread
Standard
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Roller
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21X Series
Load Capacity
650 lb
Accessories
Optional: P-DL21X-14 (Directional Lock)
ESD Conductive
No
Load Capacity - Maximum
650 lb
Wheel Hardness Rating
65 Shore D
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
