  11. Swivel Plate Cstr, Polyurethane, 4in, 250lb
Shop All Plate Casters
Zoro Select

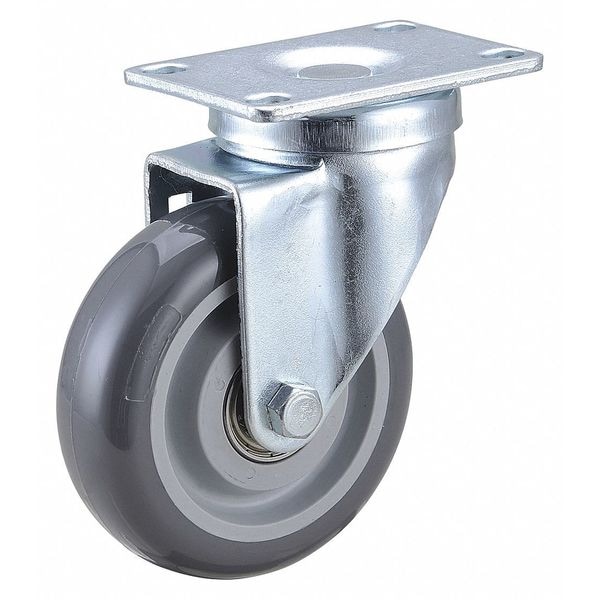

Swivel Plate Cstr, Polyurethane, 4in, 250lb

product price: $6.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 5-3/16"
Wheel Dia. 4 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Plate Size 2-1/2" x 3-5/8"
Caster Plate Size 2-1/2" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Height 5 3/16 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Crown
Caster Wheel/Tread Material Polyurethane
Load Rating 250 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Includes Thread guards
Core Color Gray
Extended Lead No
Item Standard Plate Caster
Plate Caster Bolt Hole Pattern C
Caster Temp. Range -40 Degrees to 175 Degrees F
Caster Plate Hole Pattern C
Caster Wheel Bearings Ball
Caster Frame Material Steel
Caster Raceway Double Ball
Caster Product Group Swivel Caster
Non-Marking Yes
Plate Thickness 5/32"
Wheel Color Gray
Frame Material Steel
Durometer 95 Shore A
Caster Core Material Polyolefin
Caster Swivel Lock Type No Lock Included
Thread Guards No
Frame Finish Zinc Plated
Standards ANSI/ICWM
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Caster Min. Temp. -40 Degrees F
Caster Temp. Range Available Yes
Application Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Max. Temp. 175 Degrees F
Caster Plate Thickness 5/32"
Caster Brake Type No Brake Included
Wheel Bearing Type Precision Ball
Tread Shape Standard
Number of Mounting Holes 4
Wheel/Tread Hardness 95 Shore A
Mounting Plate Bolt Hole Pattern C
Swivel Raceway Type Double Ball
Load Rating Range 0 to 299 lb
Wheel/Tread Hardness Rating Firm
Includes Thread Guards No
Wheel Core Material Plastic
Swivel Lock Type No Lock Included
Swivel Construction Kingpin
Wheel/Tread Material Polyurethane
Wheel/Tread Color Gray

Description

Swivel, Standard Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
