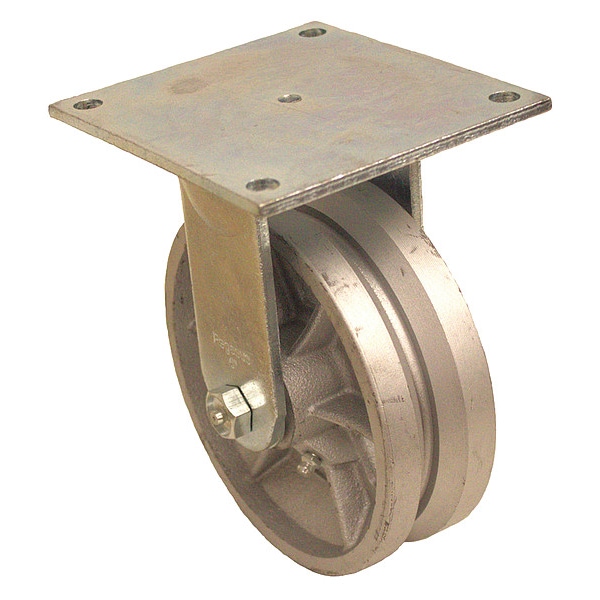

Zoro Select Plate Caster, 1000 lb. Ld Rating, Roller P21R-C060R-15-VG1 - main

Plate Caster, 1000 lb. Ld Rating, Roller

  • Mfr # P21R-C060R-15-VG1

  • Zoro # G3317345

product price:  $58.99
/ea

Key Features

Caster Frame Material
Steel
Load Rating
1000 lb
Non-Marking
No
Caster Brake Included
No
Thread Guards
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-C060R-15-VG1
Zoro #
G3317345
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Overall Height
7-1/2in
Wheel Width
2 in
Wheel Dia.
6 in
Mounting Height
7 1/2 in
Mounting Plate Size
5 in x 5-1/2 in
Bolt Hole Spacing - Width
4.125 in
Bolt Hole Spacing - Length
4.5 in
Mounting Plate Thickness
0.236 in
Mounting Plate Length
5 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in

Details

Caster Frame Material
Steel
Load Rating
1000 lb
Non-Marking
No
Caster Brake Included
No
Thread Guards
No
Number of Wheels
1
Caster Plate Hole Pattern
D
Wheel Color
Silver
Features
Angle Iron Track Compatible
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Sub-Type
Rigid
Extended Lead
No
Frame Finish
Zinc Plated
Item
Rigid Caster
Replacement Wheel
Mfr. No. P-C-060x020/050R-VG1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Standards
ANSI ICWM, NSF Listed
Core Color
Gray
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Includes Thread Guards
No
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Number of Mounting Holes
4
Wheel/Tread Material
Cast Iron
Load Rating Range
Medium Duty
System of Measurement
Inch
Series
P21 Series
Tread
Standard
Tread Color
Silver
Load Capacity
1200 lb
Caster Mounting Type
Plate
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
1,200 lb
Compatible With
P-C-060X020/050R-VG1
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
180-220 BHN
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
