  11. Swivel Plate Shock-Absorbing Caster, Rubber, 6 in.

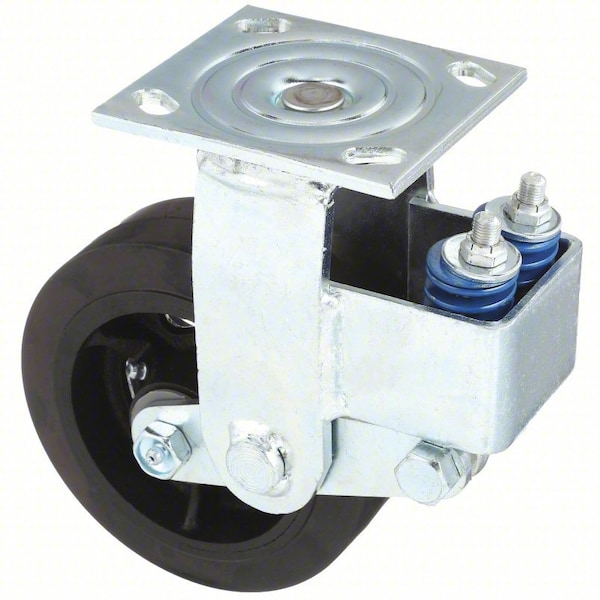

Zoro Select Swivel Plate Shock-Absorbing Caster, Rubber, 6 in. P22S-RY060R-14 - main

Swivel Plate Shock-Absorbing Caster, Rubber, 6 in.

  • Mfr # P22S-RY060R-14

  • Zoro # G1702741

product price: $117.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P22S-RY060R-14
Zoro #
G1702741
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
8 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
8-1/2in
Stem Dia.
No Stem
Swivel Radius
4-3/4 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
Retail, Industrial, Commercial
Thread Guards
No
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Caster Brake Included
No
Features
Shock Absorbing
Caster Temp. Range Available
Yes
Wheel Color
Black
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Tread
Standard
Tread Color
Black
Wheel Core Material
Cast Iron
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Max. Spring Deflection
55/64 in
Series
P22 Series
Load Capacity
500 lb
Load Capacity - Maximum
500 lb
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Spoke
Mounting Hole Type
Slot
Maximum Compression Force
800 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
