  11. Swivel Plt Cstr, 6-3/16 in H, NSF-Listed Plate Type A
Zoro Select Swivel Plt Cstr, 6-3/16 in H, NSF-Listed Plate Type A 33H918 - main

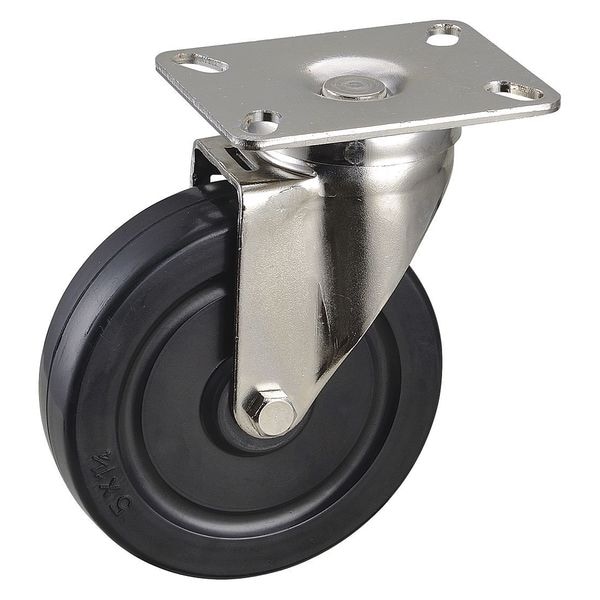

Swivel Plt Cstr, 6-3/16 in H, NSF-Listed Plate Type A

  • Mfr # 33H918

  • Zoro # G4804317

product price: $13.45
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33H918
Zoro #
G4804317
UPC #
190735900796
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
7/16 in
Overall Height
6-3/16in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
240 lb
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Standards
ANSI, ANSI ICWM, NSF
Includes
Top and Bottom Grease Seals; Dust Cover
Extended Lead
No
Replacement Wheel
26Y364
Frame Finish
Nickel Plated
Wheel Color
Black
Caster Brake Included
No
Caster Temp. Range Available
Yes
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Load Rating Range
0 to 299 lb
Wheel Core Material
Rubber
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Soft
Load Capacity - Maximum
240 lb
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 240 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
