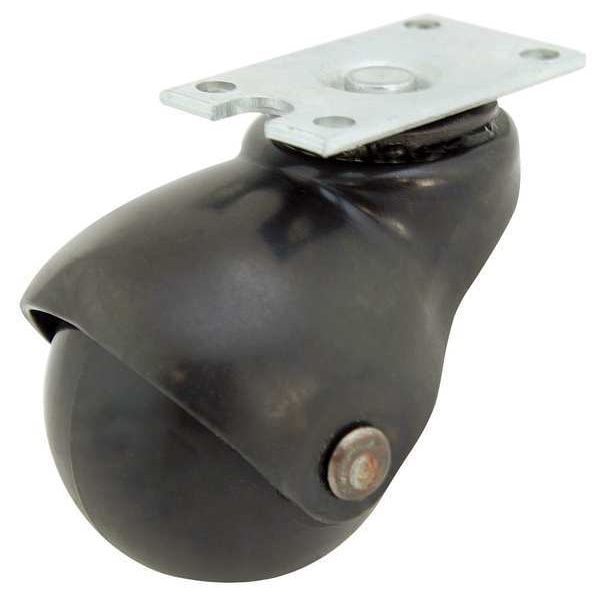

Zoro Select Swivel Plt Cstr, Polypropylene, 2 in, 75 lb 53917 - main

Swivel Plt Cstr, Polypropylene, 2 in, 75 lb

  • Mfr # 53917

  • Zoro # G0082498

product price:  $5.39
/ea

Key Features

Wheel Dia.
2 in
Inside Bolt Hole Spacing
1-3/8 in x 5/8 in
Number of Wheels
1
Caster Sub-Type
Swivel
Load Rating
75 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
53917
Zoro #
G0082498
UPC #
034238539179
Country of Origin
United States

Dimensions

Wheel Dia.
2 in
Mounting Bolt Dia.
3/16 in
Overall Height
3-1/8in
Stem Dia.
No Stem
Swivel Radius
2 in
Wheel Width
2 in
Mounting Plate Size
1 3/16 in x 2 in
Mounting Height
2 5/8 in
Mounting Plate Width
1 3/16 in
Bolt Hole Spacing - Width
0.625 in
Bolt Hole Spacing - Length
1.375 in
Mounting Plate Thickness
1/4 in
Mounting Plate Length
2 in

Details

Inside Bolt Hole Spacing
1-3/8 in x 5/8 in
Number of Wheels
1
Caster Sub-Type
Swivel
Load Rating
75 lb
Includes
Wheel Hood
Thread Guards
No
Non-Marking
Yes
Standards
ANSI, BIFMA
Core Color
Black
Wheel Color
Black
Extended Lead
No
Item
Plate Caster
Caster Stem Type
No Stem/Plate Included
Frame Finish
Black Oxide
Outside Bolt Hole Spacing
1-1/8 in x 1-3/4 in
Caster Brake Included
No
Caster Frame Material
Steel
Application
Office Chairs and Furniture
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
D
System of Measurement
Inch
Caster Brake Type
No Brake
Swivel Construction
Kingpinless
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Bearing Type
Ball
Load Rating Range
0 to 299 lb
Number of Mounting Holes
4
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel/Tread Material
Vinyl
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
75 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature Range
-20 Degrees to 130 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
130 Degrees F

Description

Swivel, Plate Caster, Load Rating 75 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 2 in, Wheel/Tread Material Vinyl, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
