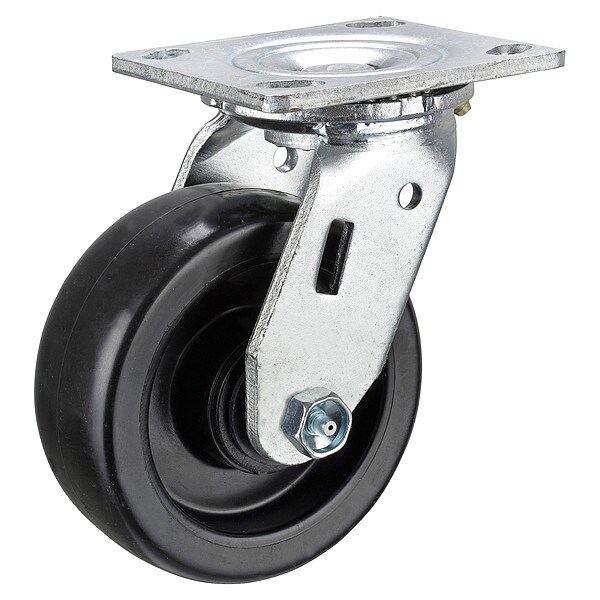

Swivel Plt Cstr, Polypropylene, 4in, 450 lb

  • Mfr # P21S-PB040R-14
  • Zoro # G6102241
product price:
$
33.15
/ea

Key Features

Caster Brake Included
No
Stem Dia.
No Stem
Load Rating
450 lb
Caster Temp. Range Available
Yes
Mounting Bolt Dia.
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PB040R-14
Zoro #
G6102241
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8"
Wheel Width
2 in
Wheel Dia.
4 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
3-3/8 in
Mounting Plate Thickness
7/32 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in

Details

Caster Brake Included
No
Load Rating
450 lb
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Extended Lead
No
Wheel Color
Black
Core Color
Black
Item
Plate Caster
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Thread Guards
No
Caster Plate Hole Pattern
B
Tread
Standard
Caster Mounting Type
Plate
System of Measurement
Inch
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-PB-040x020/050R
Caster Brake Type
No Brake
Tread Color
Black
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel Core Material
Polyolefin
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Roller
Tread Shape
Standard
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL21-14 (Directional Lock)
ESD Conductive
No
Load Capacity
500 lb
Series
P21 Series
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
500 lb
Caster Features
Corrosion-Resistant, Maintenance Free
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
