  6. Swivel Plt Cstr w/Brk, 600 lb., 65 Shore A

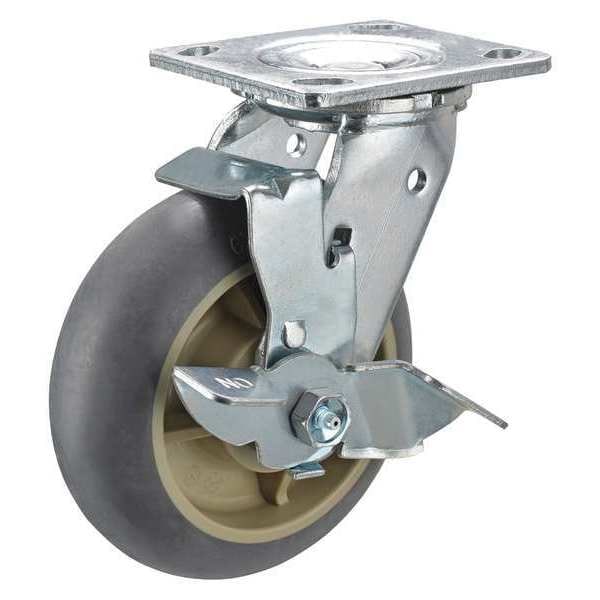

Zoro Select Swivel Plt Cstr w/Brk, 600 lb., 65 Shore A P21S-RCP060R-14-H7-WB - main

Swivel Plt Cstr w/Brk, 600 lb., 65 Shore A

  • Mfr # P21S-RCP060R-14-H7-WB

  • Zoro # G7041736

product price:  $77.29
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Stem Type
No Stem/Plate Included
Load Rating
500 lb
Thread Guards
No
Mounting Bolt Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-RCP060R-14-H7-WB
Zoro #
G7041736
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Overall Height
7-1/4in
Wheel Width
2 in
Stem Dia.
No Stem
Mounting Height
7 1/4 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
5 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in
For Axle Dia.
1/2 in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Stem Type
No Stem/Plate Included
Load Rating
500 lb
Thread Guards
No
Standards
ANSI ICWM
Number of Wheels
1
Frame Finish
Zinc Plated
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Extended Lead
No
Caster Sub-Type
Swivel
Wheel Color
Gray
Core Color
Gray
Item
Swivel Caster with Brake
Caster Brake Type
Side Brake
Non-Marking
Yes
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
Yes
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-RCP-060x020/050R
Tread
Crowned
Caster Mounting Type
Plate
Tread Color
Gray
System of Measurement
Inch
Includes
Strap Type Brake
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Tread Shape
Donut Tread
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Series
P21 Series
Accessories
Optional: P-DL21-14 (Directional Lock)
Load Capacity
500 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
65 Shore A
Compatible With
P-RCP-060X020/050R
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Slot
Brake Location
Side
Wheel Bearing Material
Steel
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature Range
-45 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Donut
