  6. Swivel Pneumatic Caster w/ Brak, 6 in., 200 lb.

This item is Discontinued.

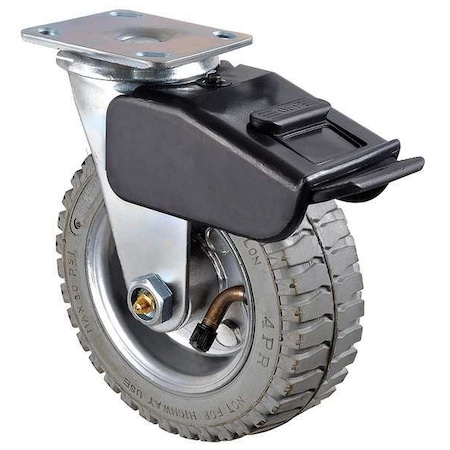

Zoro Select Swivel Pneumatic Caster w/ Brak, 6 in., 200 lb. 1ULH2

Swivel Pneumatic Caster w/ Brak, 6 in., 200 lb. (Discontinued)

  • Mfr # 1ULH2
  • Zoro # G1934913
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1ULH2
Zoro #
G1934913
UPC #
190735414576
Country of Origin
China

Dimensions

Overall Height
7-1/2"
Wheel Dia.
6 1/8 in
Wheel Width
1 7/8 in
Plate Thickness
7/32"
Hub Width
2-1/4"
Plate Size
2-1/2" x 3-5/8"
Mounting Bolt Dia.
5/16 in
Tire Rim Dia.
4 in
Tire Thickness
7/8 in
Mounting Plate Size
2-3/4 in x 3-5/8 in
Mounting Height
7 1/2 in

Details

Caster Load Rating Range
Light-Duty
Caster Sub-Type
Swivel
Load Rating
200 lb
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Plate Hole Pattern
C
Plate Caster Bolt Hole Pattern
C
Frame Finish
Zinc Plated
Caster Temp. Range Available
No
Caster Wheel Bearings
Ball
Hub Material
Steel
Ply
4
Frame Material
Steel
Hub Type
Symmetrical
Item
Plate Caster with Pneumatic Wheels
Caster Product Group
Swivel Caster with Total Lock
Caster Raceway
Double Ball
Tread Color
Gray
Hub Color
Gray
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Tread
Centipede
Caster Brake Type
Total Lock Brake
Non-Marking
No
Load Rating Range
0 to 299 lb
Number of Mounting Holes
4
Includes Thread Guards
Yes
Mounting Plate Bolt Hole Pattern
C
Wheel Bearing Type
Precision Ball
Swivel Raceway Type
Double Ball
Caster Frame Material
Steel
Swivel Construction
Kingpin
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft

Description

Plate Caster with Pneumatic Wheels, Load Rating Range 0 to 299 lb, Load Rating 200 lb, Tread Centipede, Wheel Dia. 6 1/8 in, Wheel Width 1 7/8 in, Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in, Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in, Caster Brake Type Total Lock Brake, Caster Product Group Swivel Caster with Total Lock, Caster Sub-Type Swivel, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 4 in, Tire Thickness 7/8 in, Frame Finish Zinc Plated, Tread Color Gray
