  11. Swivel Stem Caster, TPR, 5 in., 300 lb.

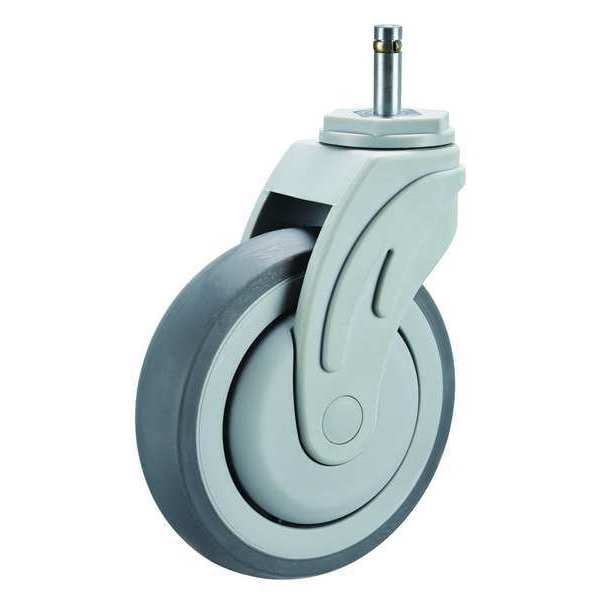

Zoro Select Swivel Stem Caster, TPR, 5 in., 300 lb. P17S-RP050K-SG1-001 - main

Swivel Stem Caster, TPR, 5 in., 300 lb.

  • Mfr # P17S-RP050K-SG1-001

  • Zoro # G5630502

product price: $21.55
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 25/32 in
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P17S-RP050K-SG1-001
Zoro #
G5630502
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 25/32 in
Stem Length
1-7/16 in
Stem Dia.
7/16 in
Overall Height
6-7/8 in
Wheel Dia.
5 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
3-13/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Polyolefin
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Includes
Thread Guards
Frame Finish
Natural Light Gray
Features
Glass Filled Nylon Body
Wheel Color
Gray
Caster Brake Included
No
Caster Wheel Bearings
Precision Ball
Caster Core Material
Polypropylene
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. NG-05QDP-125-05
Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Caster Raceway
Precision Ball
Caster Temp. Range
-4 Degrees To 140 Degrees F
Core Color
Gray
Caster Product Group
Swivel Caster
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Load Rating Range
Light Duty
Wheel Core Material
Polypropylene
Swivel Raceway Type
Sealed Single Ball Bearing
Operating Temperature Range
-45 Degrees to 180 Degrees F
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Caster Break Type
No Brake Included
System of Measurement
Inch
Includes Thread Guards
Yes
Series
P17 Series
ESD Conductive
No
Tread Color
Gray
Caster Mounting Type
Grip Ring Stem
Extended Lead
No
Tread
Standard
Wheel/Tread Hardness
85-95 Shore A
Load Capacity
220 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Operating Temperature - Maximum
180 Degrees F
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Minimum
-45 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Core Type
Solid
Compatible Wheel Manufacturer Model Number
NG-05QDP-125-05
Wheel Hardness Rating
80 Shore A
Frame Color
Gray
Load Capacity - Maximum
220 lb

Description

Stem Caster, Swivel Caster, 220 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 6 25/32 in Mounting Height, Ball, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
