  6. Swivel Stem Caster w/Totl Lk, 5 in, 300 lb
Zoro Select Swivel Stem Caster w/Totl Lk, 5 in, 300 lb P17S-RP050K-SG1-TB-001 - main

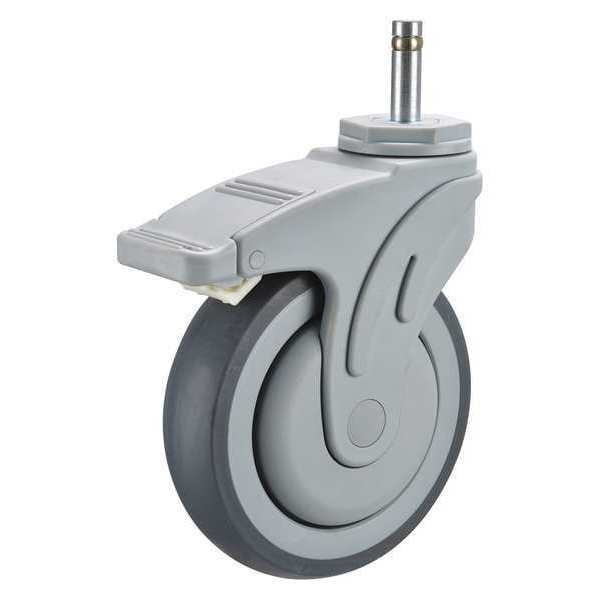

Swivel Stem Caster w/Totl Lk, 5 in, 300 lb

  • Mfr # P17S-RP050K-SG1-TB-001

  • Zoro # G5604137

product price:  $22.75
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 25/32 in
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP050K-SG1-TB-001
Zoro #
G5604137
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 25/32 in
Stem Length
1-7/16 in
Wheel Dia.
5 in
Overall Height
6 1/2 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
3-13/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster With Total-Lock
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Polyolefin
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Load Rating Range
Light Duty
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Raceway
Precision Ball
Features
Glass Filled Nylon Body
Frame Finish
Unfinished
Caster Wheel Shape
Standard
Standards
ANSI ICWM, RoHS Compliant
Core Color
Gray
Caster Brake Included
Yes
Caster Core Material
Polypropylene
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Swivel Lock Type
Total-Lock
Caster Product Group
Swivel Caster With Total-Lock
Caster Wheel Bearings
Precision Ball
Caster Temp. Range Available
Yes
Wheel Color
Gray
Includes
Thread Guards
Replacement Wheel
Mfr. No. NG-05QDP-125-05
Caster Sub-Type
Swivel
Swivel Lock Type
Total Lock
Operating Temperature Range
-45 Degrees to 180 Degrees F
Wheel Core Material
Plastic
Swivel Raceway Type
Precision Ball
Wheel/Tread Color
Gray
Caster Mounting Type
Grip Ring Stem
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
220 lb
Includes Thread Guards
Yes
Extended Lead
No
ESD Conductive
No
Wheel/Tread Hardness
85-95 Shore A
System of Measurement
Inch
Caster Break Type
Total Lock
Tread
Standard
Tread Color
Gray
Series
Pegasus 17
Load Capacity - Maximum
220 lb
Wheel Core Type
Solid
Operating Temperature - Minimum
-45 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Frame Color
Gray
Compatible Wheel Manufacturer Model Number
NG-05QDP-125-05
For Surface Type
Tile, Vinyl, Wood
Wheel Hardness Rating
80 Shore A
Operating Temperature - Maximum
180 Degrees F

Description

Stem Caster, Swivel Caster with Total Lock, 220 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 6 25/32 in Mounting Height, Ball, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
