  11. Swivel Stem Cstr w/Totl Lock, 4 in, 275 lb
Zoro Select Swivel Stem Cstr w/Totl Lock, 4 in, 275 lb P17S-RP040K-ST2-TB-001 - main

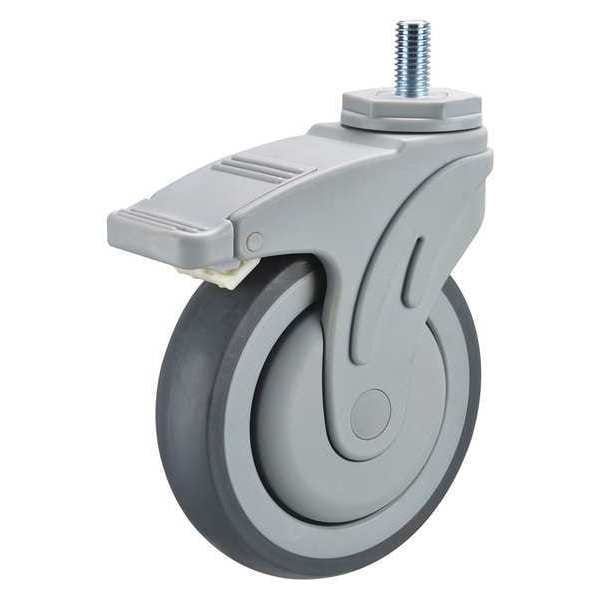

Swivel Stem Cstr w/Totl Lock, 4 in, 275 lb

  • Mfr # P17S-RP040K-ST2-TB-001

  • Zoro # G5568963

product price: $34.85
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
5 23/32 in
Load Rating
190 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP040K-ST2-TB-001
Zoro #
G5568963
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
5 23/32 in
Stem Length
1 in
Thread Size
1/2"-13
Wheel Dia.
4 in
Stem Dia.
1/2 in
Caster Thread Size
1/2"-13
Overall Height
5-13/16 in
Caster Stem Size
1/2"-13 x 1 in
Swivel Radius
3-5/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster With Total-Lock
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
190 lb
Wheel/Tread Material
Polyolefin
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Swivel Lock Type
Total-Lock
Caster Temp. Range Available
Yes
Wheel Color
Gray
Features
Glass Filled Nylon Body
Caster Wheel/Tread Material
Thermoplastic Rubber
Frame Finish
Natural Light Gray
Caster Raceway
Precision Ball
Caster Core Material
Polypropylene
Caster Brake Included
Yes
Caster Load Rating Range
Light Duty
Replacement Wheel
Mfr. No. NG-04QDP-125-05
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Wheel Bearings
Precision Ball
Caster Sub-Type
Swivel
Includes
Total-Lock, Thread Guards
Standards
RoHS, ICWM
Caster Product Group
Swivel Caster With Total-Lock
Caster Wheel Shape
Standard
Core Color
Gray
Swivel Raceway Type
Sealed Single Ball Bearing
Swivel Lock Type
Total Lock
Wheel Core Material
Polypropylene
Operating Temperature Range
-45 Degrees to 180 Degrees F
Wheel/Tread Color
Gray
ESD Conductive
No
Includes Thread Guards
Yes
Wheel/Tread Hardness
85-95 Shore A
System of Measurement
Inch
Extended Lead
No
Series
P17 Series
Load Capacity
190 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Break Type
Total Lock
Caster Mounting Type
Threaded Stem
Tread Color
Gray
Tread
Standard
Operating Temperature - Minimum
-45 Degrees F
Load Capacity - Maximum
190 lb
Compatible Wheel Manufacturer Model Number
NG-04QDP-125-05
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
For Surface Type
Tile, Vinyl, Wood
Wheel Core Type
Solid
Wheel Hardness Rating
80 Shore A
Operating Temperature - Maximum
180 Degrees F
Frame Color
Gray

Description

Stem Caster, Swivel Caster with Total Lock, 190 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 1/4 in Wheel Width, Polyolefin Wheel/Tread Material, 5 23/32 in Mounting Height, Ball, 1/2 In.-13 x 1 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
