  11. Swivel Stem Cstr w/Totl Lock, 5 in, 325 lb

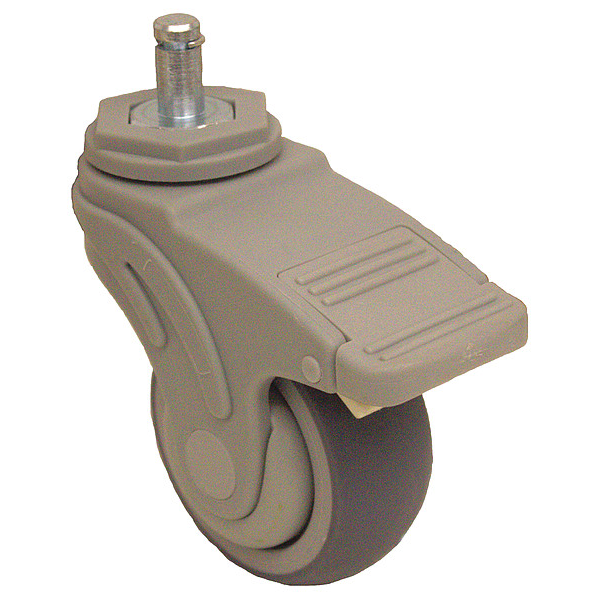

Zoro Select Swivel Stem Cstr w/Totl Lock, 5 in, 325 lb P17S-RP050K-SG7-TB-001 - main

Swivel Stem Cstr w/Totl Lock, 5 in, 325 lb

  • Mfr # P17S-RP050K-SG7-TB-001

  • Zoro # G2323097

product price: $25.19
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 25/32 in
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P17S-RP050K-SG7-TB-001
Zoro #
G2323097
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 25/32 in
Stem Length
2-1/8 in
Stem Dia.
0.843 in
Overall Height
6-7/8 in
Wheel Dia.
5 in
Caster Stem Size
27/32 in x 2-3/16 in
Swivel Radius
3-13/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster With Total-Lock
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Sub-Type
Swivel
Caster Swivel Lock Type
Total-Lock
Includes
Total-Lock, Thread Guards
Features
Maintenance Free, Sealed Precision Bearing Raceway, Smooth and Quiet, Total Lock Brake, Directional Lock, Resistance to Most Chemicals, Recessed Axle with Plastic Cap Covers
Standards
RoHS, ICWM
Frame Finish
Natural Light Gray
Caster Temp. Range Available
Yes
Caster Raceway
Precision Ball
Caster Brake Included
Yes
Wheel Color
Gray
Core Color
Gray
Caster Product Group
Swivel Caster With Total-Lock
Caster Core Material
Polypropylene
Caster Wheel Bearings
Precision Ball
Caster Load Rating Range
Light Duty
Caster Wheel Shape
Standard
Caster Temp. Range
-4 Degrees To 140 Degrees F
Operating Temperature Range
-45 Degrees to 180 Degrees F
Wheel Core Material
Polypropylene
Swivel Lock Type
Total Lock
Swivel Raceway Type
Sealed Single Ball Bearing
Wheel/Tread Color
Gray
Load Capacity
220 lb
Series
P17 Series
Includes Thread Guards
Yes
Caster Break Type
Total Lock
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Extended Lead
No
ESD Conductive
No
Tread
Standard
Wheel/Tread Hardness
85-95 Shore A
Tread Color
Gray
Caster Mounting Type
Grip Ring Stem
Operating Temperature - Maximum
180 Degrees F
Wheel Hardness Rating
80 Shore A
Wheel Core Type
Solid
For Surface Type
Tile, Vinyl, Wood
Load Capacity - Maximum
220 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Frame Color
Gray
Operating Temperature - Minimum
-45 Degrees F

Description

Stem Caster, Swivel Caster with Total Lock, 220 lb Load Rating, 0 to 299 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 6 25/32 in Mounting Height, Ball, 27/32 in x 2-3/16 in Caster Stem Size, Friction Ring, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 1 Number of Wheels
