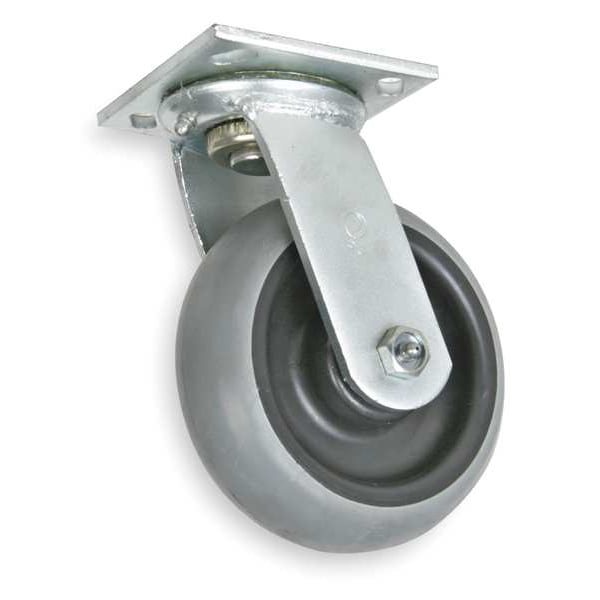

Zoro Select Swivl Plat Caster, Rubber, 8 in., 675 lb, B 1NWH3 - main

Swivl Plat Caster, Rubber, 8 in., 675 lb, B

  • Mfr # 1NWH3

  • Zoro # G2689967

product price:  $36.49
/ea

Key Features

Overall Height
9-1/2in
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1NWH3
Zoro #
G2689967
UPC #
190735406243
Country of Origin
Multiple

Dimensions

Overall Height
9-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Stem Dia.
No Stem
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Mounting Plate Thickness
1/4in

Details

Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Item
Plate Caster
Caster Temp. Range Available
No
Caster Plate Hole Pattern
B
Caster Brake Included
No
Thread Guards
No
Core Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Wheel Color
Gray
Includes
Spanner Bushing
Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Load Rating
675 lb
System of Measurement
Inch
Caster Brake Type
No Brake
Non-Marking
Yes
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Core Material
Polyolefin
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity - Maximum
675 lb
Wheel Hardness Rating
75 Shore A

Description

Swivel, Plate Caster, Load Rating 675 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
