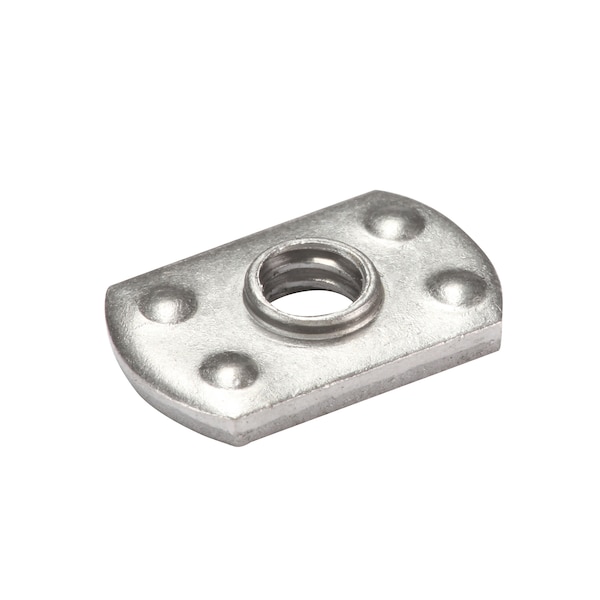

Tab Weld Nut, 1/4"-20, Steel, 1/2 in Wd, 13/16 in Lg, 1/32 in Ht, 50 PK
Mfr # 1LAJ9
Zoro # G1199965
CAD Available
product price:Â $8.79
/pk 50, $0.18/eaKey Features
CAD Drawing
Base Shape
Tab
Material
Steel
Finish
Black Oxide
Base Width
1/2 in
Base Length
13/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1LAJ9
Zoro #
G1199965
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
1/4"-20
Base Width
1/2 in
Base Length
13/16 in
Base Height
1/32 in
Collar Height
0.02 in
Collar Diameter
0.125 in
Pilot Hole Size
5/16 in
Pilot Height
0.032 in
Pilot Dia.
19/64 in
Base Thickness
3/32 in
For Hole Diameter
5/16 in
Projection Width
0.125 in
Projection Height
0.02 in
Dia./Thread Size
1/4"-20
Description
Weld Nut, Material Steel, Finish Black Oxide, Thread Size 1/4 In.-20, Base Height 1/32 in, Base Width 1/2 in, Base Length 13/16 in, Collar Height 0.02 in, Collar Diameter 0.125 in, Number of Weld Projections 4, System of Measurement Inch, Base Shape Tab, Barrel Diameter Not Applicable, Barrel Height 1/2 in, Base Diameter Not Applicable, For Hole Diameter 5/16 in, Hole Location Center, Pack Size Small Pack, Package Quantity 50
