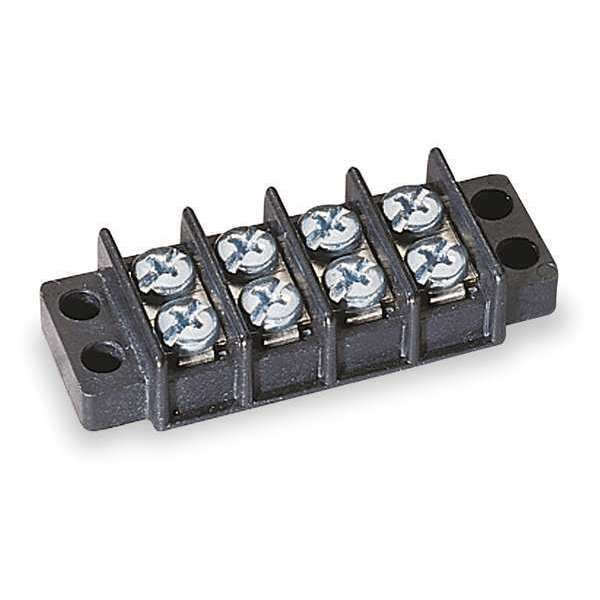

Terminal Strip, 30A, 4 Pole, 600VAC

product price: $4.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Amps 30 A
  • Max. Wire Size 10 AWG
  • Min. Wire Size 22 AWG
  • Voltage 600
  • Number of Poles 4
See all product information

Product Information

Dimensions

Max. Wire Size 10 AWG
Min. Wire Size 22 AWG
Length 3.25 in
Width 1.34 in
Height 0.83 in
Length (Straight Wireway) 3.25 in
Overall Width 1.34 in
Termination Screw Size #8-32
For Minimum Wire Size 22 AWG
Overall Height 0.83 in
Overall Length 3.24 in
For Maximum Wire Size 10 AWG

Details

Item Terminal Strip
Amps 30 A
Voltage 600
Number of Poles 4
Center Spacing 9/16 in
Temp. Range -40 Degrees to 266 Degrees F
Color Black
Material Thermal Plastic
Standards cRUus
Termination Screw Material Steel
Maximum Voltage 600 V AC
Termination Style Screw
Current 30 A
RoHS Compliant Yes
Mounting Style Bolt Down
Number of Rows 2
Compatible with Product Type Power Distribution Blocks
Cover Included No
Torque 12 in-lb
Terminal Material Copper
Minimum Operating Temperature -76 Degrees F
Housing Color Black
Housing Material Thermal Plastic
Termination Screw Finish Nickel Plated
Maximum Operating Temperature 266 Degrees F
Screw Type Phil-Slot
UL 94 Flammability Rating V-0

Description

Terminal Strip, Barrier Style Not Applicable, Center Spacing 9/16 in, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Maximum Voltage 600 V AC, Number of Poles 4, Number of Rows 2, Overall Height 0.83 in, Overall Length 3.24 in, Overall Width 1.34 in, Compatible Manufacturer Model Number Not Applicable, Compatible with Product Type Power Distribution Blocks, Cover Included No, Housing Color Black, Housing Material Thermal Plastic, Includes Not Applicable
