  5. Thin Wall Self Locking Thread Insert, 1/2"-13 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Zoro Select Thin Wall Self Locking Thread Insert, 1/2"-13 Int Thrd Sz, 18-8 Stainless Steel, 5 PK 313-8-PK5 - main

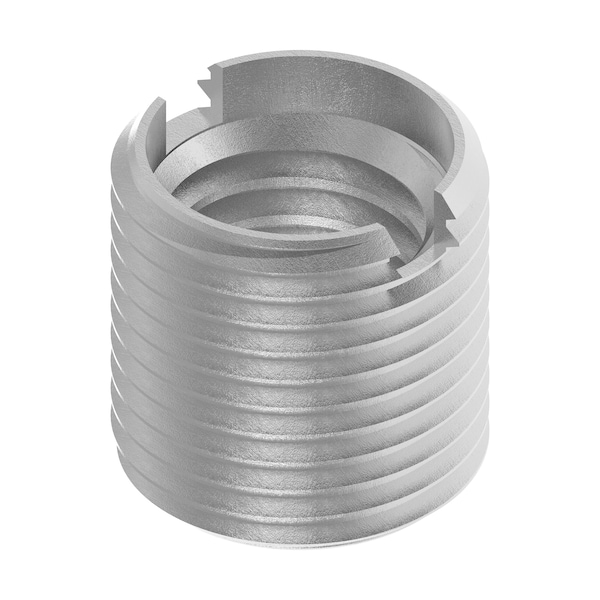

Thin Wall Self Locking Thread Insert, 1/2"-13 Int Thrd Sz, 18-8 Stainless Steel, 5 PK

  • Mfr # 313-8-PK5

  • Zoro # G809228374

CAD Available
product price:  $26.99
/pk 5, $5.40/ea

Key Features

CAD Drawing
Internal Thread Size
1/2"-13
Material
18-8 Stainless Steel
Overall Length
5/8 in
Insert Diameter
5/8 in
External Thread Size
5/8"-18
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
313-8-PK5
Zoro #
G809228374
UPC #
847554009918
Country of Origin
United States

Dimensions

Internal Thread Size
1/2"-13
Overall Length
5/8 in
Insert Diameter
5/8 in
External Thread Size
5/8"-18
Drill Bit Size
37/64 in
Minimum Installation Depth
11/16 in
Compatible Tap Size
5/8"-18
Maximum Hole Diameter
0.578 in

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
18-8 Stainless Steel
Wall Type
Thin Wall
Thread Type
UNC
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
100,000 psi
Brinell Hardness
228
Finish
Plain
Compatible with Manufacturer Model Number
500-6
Full Cure Time
72 hr
Compatible Material
Metal
Features
Pre-Applied Adhesive
Drive Type
Slotted
System of Measurement
Inch
Internal Thread Fit
2B
Thread Direction
Right Hand
External Thread Fit
2A
Compatible Manufacturer Part Number
500-6
Compatible Manufacturer Model Number
500-6
For Use With Mfr. Model Number
500-6
Compatible with Manufacturer Model No.
500-6
Compatible with Mfr. Model No.
500-6
For Use with Mfr Model Number
500-6
Compatible Pump Manufacturer Part Number
500-6
Compatible Mfr. Model Number
500-6
Material Grade/Class
18-8
Tensile Strength
100,000 psi
Series
313

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/8 In.-18, Drill Bit Size 37/64, External Thread Fit 2A, External Thread Size 5/8 In.-18, Finish Plain, Insert Diameter 5/8 in, Internal Thread Fit 2B, Internal Thread Size 1/2 In.-13, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.578 in, Minimum Installation Depth 11/16 in, Overall Length 5/8 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
