CAD Viewer & Download Files

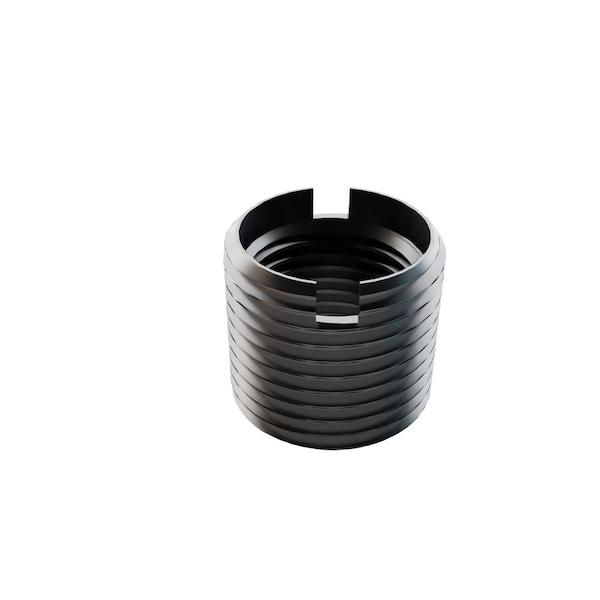

Thin Wall Self Locking Thread Insert, 5/8"-18 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Mfr # 313-1018-PK5
Zoro # G109228296
CAD Available
product price: $32.39
/pk 5, $6.48/eaKey Features
CAD Drawing
Material
18-8 Stainless Steel
Overall Length
11/16 in
Insert Diameter
3/4 in
External Thread Size
3/4"-16
Wall Type
Thin Wall
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-1018-PK5
Zoro #
G109228296
UPC #
847554009949
Country of Origin
United States
Dimensions
Internal Thread Size
5/8"-18
Overall Length
11/16 in
Insert Diameter
3/4 in
External Thread Size
3/4"-16
Drill Bit Size
11/16 in
Minimum Installation Depth
47/64 in
Compatible Tap Size
3/4"-16
Maximum Hole Diameter
0.688 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/4 In.-16, Drill Bit Size 11/16, External Thread Fit 2A, External Thread Size 3/4 In.-16, Finish Plain, Insert Diameter 3/4 in, Internal Thread Fit 2B, Internal Thread Size 5/8 In.-18, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.688 in, Minimum Installation Depth 47/64 in, Overall Length 11/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Fine
