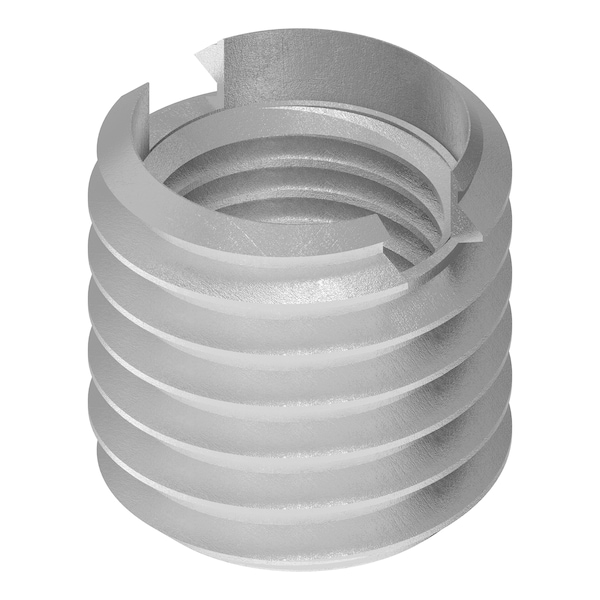

Thin Wall Self Locking Thread Insert, 7/16"-20 Int Thrd Sz, 18-8 Stainless Steel
Mfr # EZ-313-720
Zoro # G409228125
CAD Available
product price: $134.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
7/16"-20
Material
18-8 Stainless Steel
Overall Length
9/16 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-313-720
Zoro #
G409228125
UPC #
847554044148
Country of Origin
United States
Dimensions
Internal Thread Size
7/16"-20
Overall Length
9/16 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
33/64 in
Minimum Installation Depth
5/8 in
Maximum Hole Diameter
0.516 in
Compatible Tap Size
9/16"-18
Details
CAD Available
Yes
Item
Self Locking Thread Insert
Material
18-8 Stainless Steel
Wall Type
Thin Wall
Thread Type
UNF
Installation Method
Drive Tool
Finish
Plain
Compatible Material
Metal
System of Measurement
Inch
Internal Thread Fit
2B
External Thread Fit
2A
Thread Direction
Right Hand
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-18, Drill Bit Size 33/64, External Thread Fit 2A, External Thread Size 9/16 In.-18, Finish Plain, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size 7/16 In.-20, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.516 in, Minimum Installation Depth 5/8 in, Overall Length 9/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Fine
