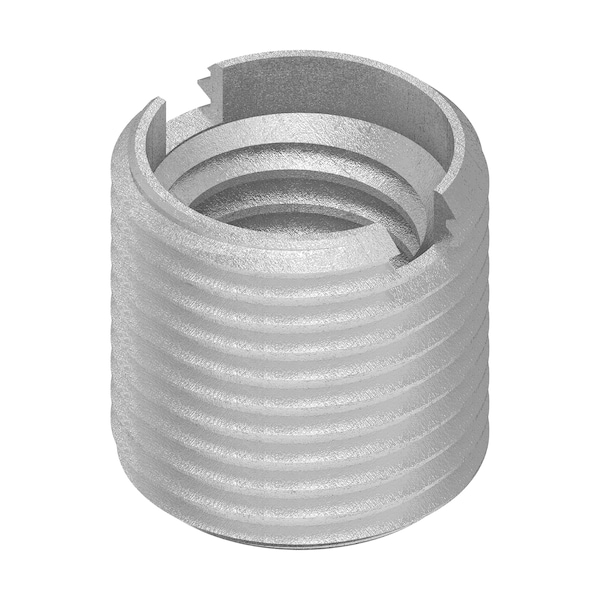

Thin Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, 18-8 Stainless Steel, 5 PK

  • Mfr # 313-M12-PK5

  • Zoro # G109228319

CAD Available
product price:
$
31.85
/pk of 5, $6.37/ea

Key Features

CAD Drawing
Internal Thread Size
M12-1.75
Material
18-8 Stainless Steel
Overall Length
5/8 in
Insert Diameter
5/8 in
External Thread Size
5/8"-18
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
313-M12-PK5
Zoro #
G109228319
UPC #
847554011669
Country of Origin
United States

Dimensions

Internal Thread Size
M12-1.75
Overall Length
5/8 in
Insert Diameter
5/8 in
External Thread Size
5/8"-18
Drill Bit Size
37/64 in
Minimum Installation Depth
11/16 in
Compatible Tap Size
5/8"-18
Maximum Hole Diameter
0.578 in
Wire Rope Length
5/8 in
Length
5/8 in

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
18-8 Stainless Steel
Wall Type
Thin Wall
Thread Type
Coarse
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
100,000 psi
Brinell Hardness
228
Finish
Plain
Full Cure Time
72 hr
Compatible with Manufacturer Model Number
500-6
Drive Type
Slotted
Thread Pitch
1.75 mm
Compatible Material
Metal
System of Measurement
Inch/Metric
Features
Pre-Applied Adhesive
Thread Direction
Right Hand
External Thread Fit
2A
Internal Thread Fit
2B
Compatible Manufacturer Part Number
500-6
Compatible Manufacturer Model Number
500-6
For Use With Mfr. Model Number
500-6
Compatible with Manufacturer Model No.
500-6
Compatible with Mfr. Model No.
500-6
For Use with Mfr Model Number
500-6
Compatible Pump Manufacturer Part Number
500-6
Compatible Mfr. Model Number
500-6
Tensile Strength
100,000 psi
Material Grade/Class
18-8
Series
313
For Manufacturer Part Number
500-6
Compatible with Mfr. Model Number
500-6

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/8 In.-18, Drill Bit Size 37/64, External Thread Fit 2A, External Thread Size 5/8 In.-18, Finish Plain, Insert Diameter 5/8 in, Internal Thread Fit 2B, Internal Thread Size M12-1.75, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.578 in, Minimum Installation Depth 11/16 in, Overall Length 5/8 in, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
