  9. Thin Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, Steel, 5 PK

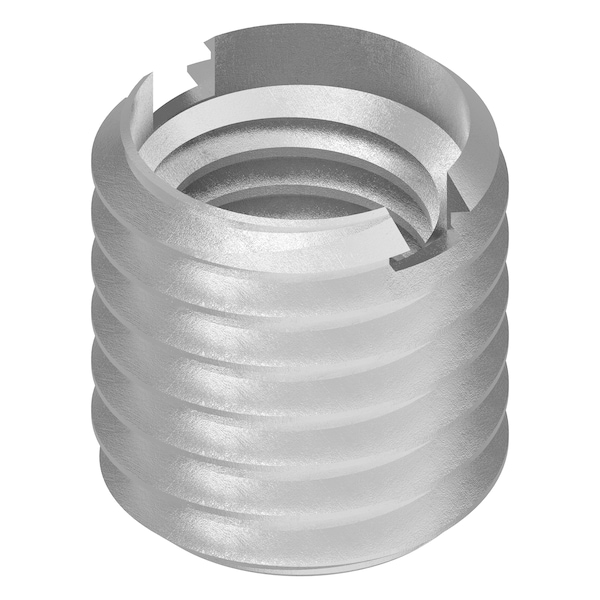

Zoro Select Thin Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, Steel, 5 PK 319-M12-PK5 - main

CAD Drawings

Download CAD Files

Thin Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, Steel, 5 PK

  • Mfr # 319-M12-PK5

  • Zoro # G909228328

CAD Available
product price: $13.99
/pk 5, $2.80/ea

Key Features

CAD Drawing
Internal Thread Size
M12-1.75
Material
Steel
Overall Length
16 mm
Insert Diameter
5/8 in
External Thread Size
5/8"-11
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
319-M12-PK5
Zoro #
G909228328
UPC #
847554001110
Country of Origin
United States

Dimensions

Internal Thread Size
M12-1.75
Overall Length
16 mm
Insert Diameter
5/8 in
External Thread Size
5/8"-11
Drill Bit Size
37/64 in
Minimum Installation Depth
11/16 in
Maximum Hole Diameter
0.578 in
Compatible Tap Size
5/8"-11

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Thin Wall
Thread Type
Coarse
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Finish
Black Phosphate
Brinell Hardness
163
Full Cure Time
72 hr
Drive Type
Slotted
Compatible with Manufacturer Model Number
500-7
System of Measurement
Inch/Metric
Compatible Material
Metal
Features
Pre-Applied Adhesive
Thread Pitch
1.75 mm
Material Grade/Class
12L14
Internal Thread Fit
2B
Thread Direction
Right Hand
External Thread Fit
2A
Compatible Manufacturer Part Number
500-7
Compatible Manufacturer Model Number
500-7
For Use With Mfr. Model Number
500-7
Compatible with Manufacturer Model No.
500-7
Compatible with Mfr. Model No.
500-7
For Use with Mfr Model Number
500-7
Compatible Pump Manufacturer Part Number
500-7
Compatible Mfr. Model Number
500-7

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/8 In.-11, Drill Bit Size 37/64, External Thread Fit 2A, External Thread Size 5/8 In.-11, Finish Black Phosphate, Insert Diameter 5/8 in, Internal Thread Fit 2B, Internal Thread Size M12-1.75, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.578 in, Minimum Installation Depth 11/16 in, Overall Length 16 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
