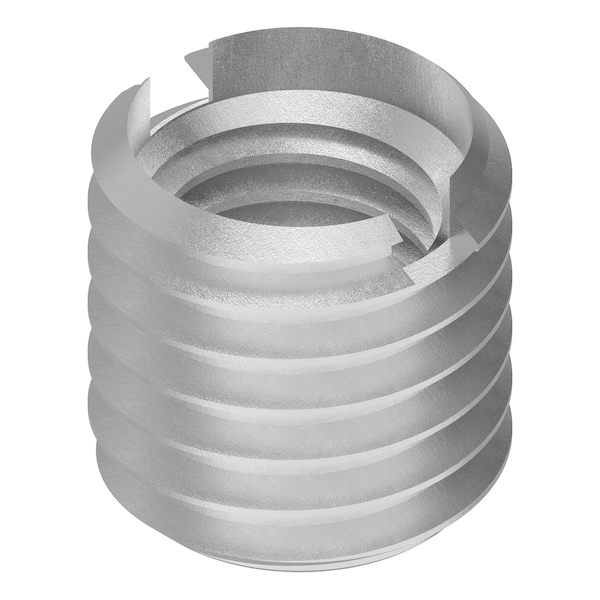

Thin Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, Steel
Mfr # EZ-310-M12
Zoro # G609228284
CAD Available
product price: $104.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M12-1.75
Material
Steel
Overall Length
16 mm
Insert Diameter
5/8 in
External Thread Size
5/8"-11
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
EZ-310-M12
Zoro #
G609228284
UPC #
847554010648
Country of Origin
United States
Dimensions
Internal Thread Size
M12-1.75
Overall Length
16 mm
Insert Diameter
5/8 in
External Thread Size
5/8"-11
Drill Bit Size
37/64 in
Minimum Installation Depth
11/16 in
Maximum Hole Diameter
0.578 in
Compatible Tap Size
5/8"-11
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/8 In.-11, Drill Bit Size 37/64, External Thread Fit 2A, External Thread Size 5/8 In.-11, Finish Black Phosphate, Insert Diameter 5/8 in, Internal Thread Fit 2B, Internal Thread Size M12-1.75, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.578 in, Minimum Installation Depth 11/16 in, Overall Length 16 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
