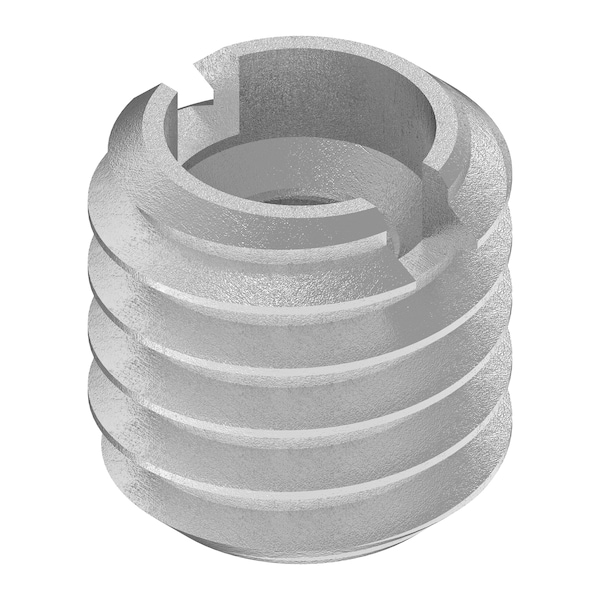

Thin Wall Self Locking Thread Insert, M4-0.70 Int Thrd Sz, Steel

  • Mfr # EZ-310-M4

  • Zoro # G809228275

CAD Available
product price:  $32.49
/ea

Key Features

CAD Drawing
Internal Thread Size
M4-0.70
Material
Steel
Overall Length
8 mm
Insert Diameter
5/16 in
External Thread Size
5/16"-18
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EZ-310-M4
Zoro #
G809228275
UPC #
847554010594
Country of Origin
United States

Dimensions

Internal Thread Size
M4-0.70
Overall Length
8 mm
Insert Diameter
5/16 in
External Thread Size
5/16"-18
Drill Bit Size
I
Minimum Installation Depth
3/8 in
Compatible Tap Size
5/16"-18
Maximum Hole Diameter
0.272 in
Wire Rope Length
8 mm

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Thin Wall
Thread Type
Coarse
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Finish
Black Phosphate
Brinell Hardness
163
Includes
(10) Threaded Inserts, Drill, Tap and Drive-Tool
System of Measurement
Inch/Metric
Compatible Material
Metal
Features
Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
Drive Type
Slotted
Material Grade/Class
12L14
Thread Pitch
0.7 mm
Thread Direction
Right Hand
External Thread Fit
2A
Internal Thread Fit
2B
Tensile Strength
78,300 psi

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/16 In.-18, Drill Bit Size I, External Thread Fit 2A, External Thread Size 5/16 In.-18, Finish Black Phosphate, Insert Diameter 5/16 in, Internal Thread Fit 2B, Internal Thread Size M4-0.70, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.272 in, Minimum Installation Depth 3/8 in, Overall Length 8 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
