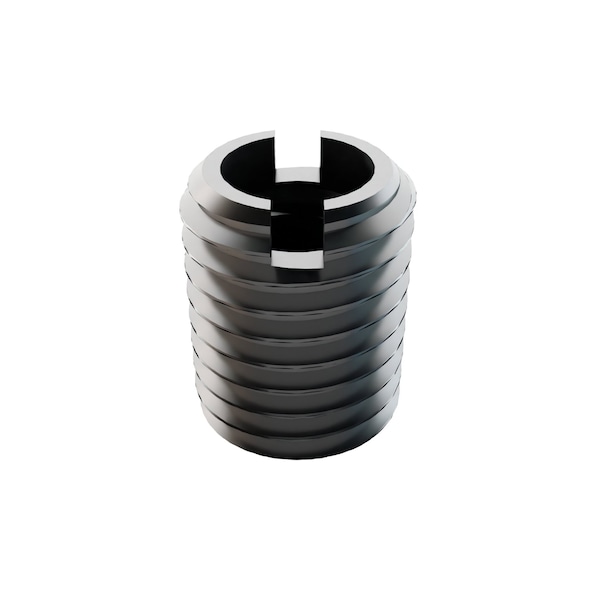

Thin Wall Self Locking Thread Insert, M5-0.80 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Mfr # 313-M5-PK5
Zoro # G809228312
CAD Available
product price: $12.69
/pk 5, $2.54/eaKey Features
CAD Drawing
Internal Thread Size
M5-0.80
Material
18-8 Stainless Steel
Overall Length
5/16 in
Insert Diameter
5/16 in
External Thread Size
5/16"-24
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-M5-PK5
Zoro #
G809228312
UPC #
847554011621
Country of Origin
United States
Dimensions
Internal Thread Size
M5-0.80
Overall Length
5/16 in
Insert Diameter
5/16 in
External Thread Size
5/16"-24
Drill Bit Size
I
Minimum Installation Depth
3/8 in
Compatible Tap Size
5/16"-24
Maximum Hole Diameter
0.272 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/16 In.-24, Drill Bit Size I, External Thread Fit 2A, External Thread Size 5/16 In.-24, Finish Plain, Insert Diameter 5/16 in, Internal Thread Fit 2B, Internal Thread Size M5-0.80, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.272 in, Minimum Installation Depth 3/8 in, Overall Length 5/16 in, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
