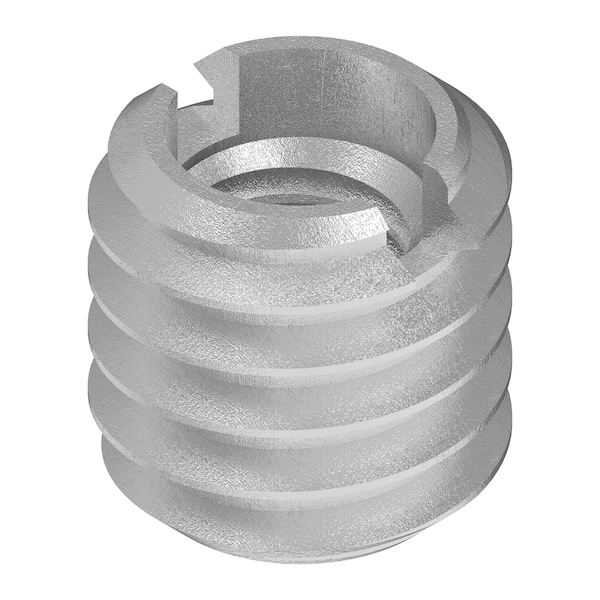

Thin Wall Self Locking Thread Insert, M5-0.80 Int Thrd Sz, Steel
Mfr # EZ-310-M5
Zoro # G809228367
CAD Available
product price: $36.15
/eaKey Features
CAD Drawing
Internal Thread Size
M5-0.80
Material
Steel
Overall Length
8 mm
Insert Diameter
5/16 in
External Thread Size
5/16"-18
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-310-M5
Zoro #
G809228367
UPC #
847554010600
Country of Origin
United States
Dimensions
Internal Thread Size
M5-0.80
Overall Length
8 mm
Insert Diameter
5/16 in
External Thread Size
5/16"-18
Drill Bit Size
I
Minimum Installation Depth
3/8 in
Maximum Hole Diameter
0.272 in
Compatible Tap Size
5/16"-18
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/16 In.-18, Drill Bit Size I, External Thread Fit 2A, External Thread Size 5/16 In.-18, Finish Black Phosphate, Insert Diameter 5/16 in, Internal Thread Fit 2B, Internal Thread Size M5-0.80, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.272 in, Minimum Installation Depth 3/8 in, Overall Length 8 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
