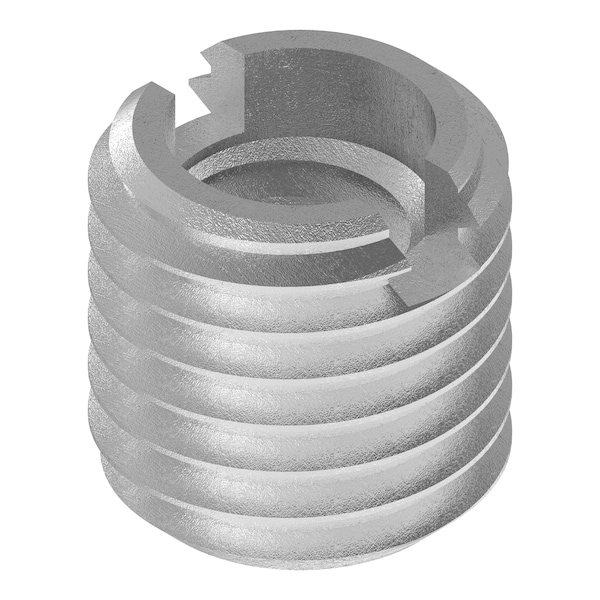

Thin Wall Self Locking Thread Insert, No. 10-24 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Mfr # 313-3-PK5
Zoro # G909228250
CAD Available
product price: $11.99
/pk 5, $2.40/eaKey Features
CAD Drawing
Internal Thread Size
#10-24
Material
18-8 Stainless Steel
Overall Length
5/16 in
Insert Diameter
5/16 in
External Thread Size
5/16"-24
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-3-PK5
Zoro #
G909228250
UPC #
847554009819
Country of Origin
United States
Dimensions
Internal Thread Size
#10-24
Overall Length
5/16 in
Insert Diameter
5/16 in
External Thread Size
5/16"-24
Drill Bit Size
I
Minimum Installation Depth
3/8 in
Compatible Tap Size
5/16"-24
Maximum Hole Diameter
0.272 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/16 In.-24, Drill Bit Size I, External Thread Fit 2A, External Thread Size 5/16 In.-24, Finish Plain, Insert Diameter 5/16 in, Internal Thread Fit 2B, Internal Thread Size #10-24, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.272 in, Minimum Installation Depth 3/8 in, Overall Length 5/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Wall Type Thin Wall
