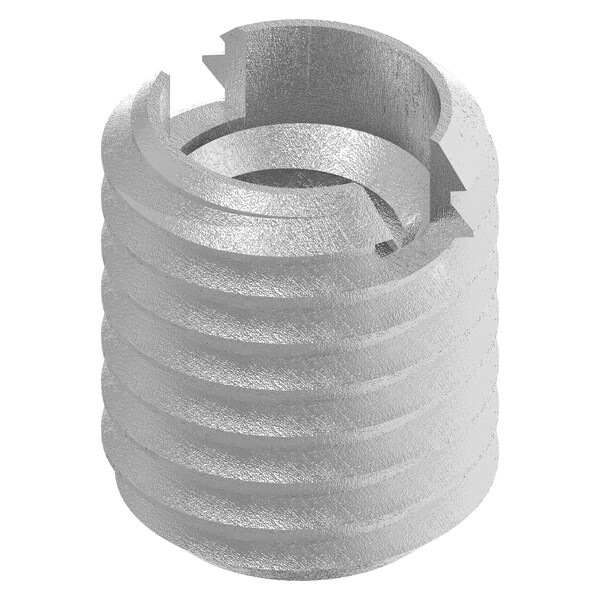

Thin Wall Self Locking Thread Insert, No. 8-32 Int Thrd Sz, 18-8 Stainless Steel, 5 PK
Mfr # 313-008-PK5
Zoro # G609228291
CAD Available
product price: $12.15
/pk 5, $2.43/eaKey Features
CAD Drawing
Internal Thread Size
#8-32
Material
18-8 Stainless Steel
Overall Length
19/64 in
Insert Diameter
1/4 in
External Thread Size
1/4"-28
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
313-008-PK5
Zoro #
G609228291
UPC #
847554009802
Country of Origin
United States
Dimensions
Internal Thread Size
#8-32
Overall Length
19/64 in
Insert Diameter
1/4 in
External Thread Size
1/4"-28
Drill Bit Size
#3
Minimum Installation Depth
11/32 in
Compatible Tap Size
1/4"-28
Maximum Hole Diameter
0.213 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 1/4 In.-28, Drill Bit Size #3, External Thread Fit 2A, External Thread Size 1/4 In.-28, Finish Plain, Insert Diameter 1/4 in, Internal Thread Fit 2B, Internal Thread Size #8-32, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.213 in, Minimum Installation Depth 11/32 in, Overall Length 19/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Wall Type Thin Wall
