CAD Viewer & Download Files

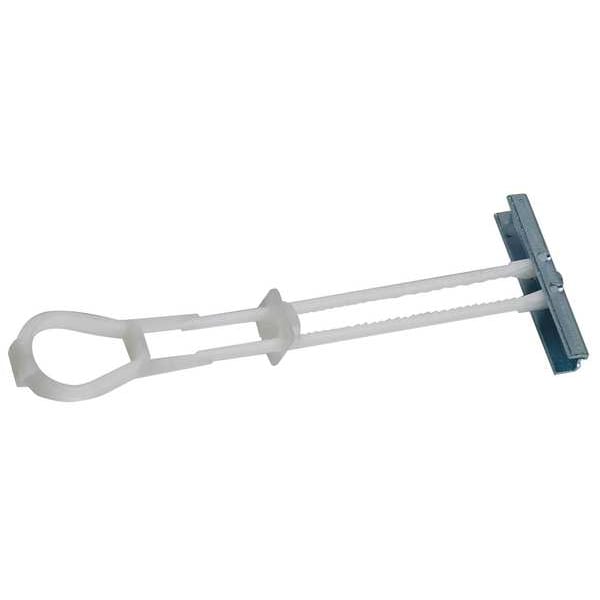

Toggle Bolt, 220 lb Tension Strength, Steel, 10 PK
Mfr # U63266.025.0001
Zoro # G5217755
CAD Available
product price: $15.69
/pk 10, $1.57/eaKey Features
CAD Drawing
Compatible Material
Block, Brick, Drywall, Plaster, Wood
Anchor Diameter
1/2"
Anchor Length
6"
Thread Size
1/4"
Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U63266.025.0001
Zoro #
G5217755
UPC #
190735827628
Country of Origin
Multiple
Dimensions
Anchor Diameter
1/2"
Anchor Length
6"
Thread Size
1/4"
Drill Bit Size
1/2"
Minimum Material Thickness
3-3/8"
Usable Length
2 in
Head Height
0.19 in
Thread Length
2 1/4 in
Size
1/4 in
Screw Size
1/4 in
Head Diameter
0.44 in
Overall Length
6 in
Maximum Material Thickness
3 5/8 in
Description
Channel Toggle Anchor, Toggle Anchor Type Toggle Bolt Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/4 In.-20, Overall Length 6 in, Screw Size 1/4 in, Screw Length 2 1/2 in, Thread Length 2 1/4 in, Drive Type Combination Slotted/Phillips, Head Type Not Applicable, Head Diameter 0.44 in, Head Height 0.19 in, Usable Length 2 in, Wing Span 1.5 in, Washer Outside Diameter Not Applicable, Material Steel, Finish Zinc Plated, Color Blue/White, Drill Bit Size 1/2 in
