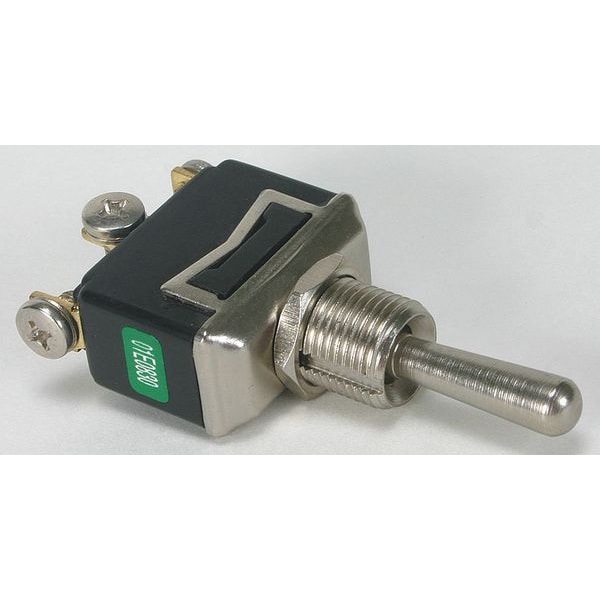

Toggle Switch, SPDT, 15A at 277V, Screw

  • Mfr # 2VLN7

  • Zoro # G1359373

product price:
$
8.29
/ea

Key Features

Number of Connections
3
Switch Function
On/Off/On
Stem Length
0.47 in
AC Contact Rating
18 A @ 125 V, 15 A @ 277 V, 20 A @ 125 V
Stem Dia. and Thread Size
M12 x 1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2VLN7
Zoro #
G1359373
UPC #
190735593608
Country of Origin
China

Dimensions

Stem Length
0.47 in
Stem Dia. and Thread Size
M12 x 1
Actuator Length
0.75 in
Mounting Hole Diameter
0.5 in
Overall Height
1.22 in
Stem Diameter
0.47 in
Manufacturer Warranty Length
2 yr
Overall Depth
0.47 in
Overall Width
0.47 in
Stem Thread Size
M12 x 1

Details

Item
Toggle Switch
Number of Connections
3
Switch Function
On/Off/On
AC Contact Rating
18 A @ 125 V, 15 A @ 277 V, 20 A @ 125 V
Mounting Hole
0.50 in dia
HP
2 hp
Standards
cRUus
Actuator Style
Bat
Contact Form
SPDT
Operating Temp. Range
185 Degrees F
Terminals
Screw
IP Rating
IP40
Product Type
Toggle Switch
Series
HY29
Base Type
Flat
Operating Temperature - Minimum
32 Degrees F
Switch Function Configuration
On/Off/On
Operator Illumination Style
Non-Illuminated
Number of Poles
1
Operating Temperature - Maximum
185 Degrees F
Actuator Material
Metal
Horsepower
2 hp
Terminal Connection Type
Screw Terminals
Metal Actuator Finish
Nickel
Number of Positions
3

Description

Toggle Switch, Contact Form SPDT, Number of Connections 3, Switch Function On/Off/On, AC Contact Rating 18 A @ 125 V, 15 A @ 277 V, 20 A @ 125 V, HP 2 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Applicable, Actuator Style Bat, Actuator Length 0.75 in, Stem Length 0.47 in, Stem Dia. and Thread Size M12 x 1, Operating Temp. Range 185 Degrees F, Standards cRUus, Includes Not Applicable
