  6. PlateCaster, Swivel, Polyurethane, 9 7/16"H
Zoro Select PlateCaster, Swivel, Polyurethane, 9 7/16"H P25S-ALB 200K-14 - main

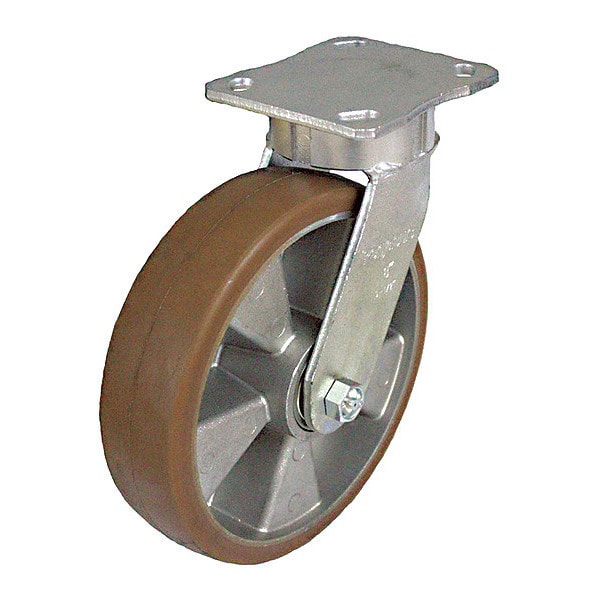

PlateCaster, Swivel, Polyurethane, 9 7/16"H

  • Mfr # P25S-ALB 200K-14

  • Zoro # G3581932

product price:  $139.99
/ea
Free Shipping & Returns

Key Features

Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Wheel Color
Brown
Mounting Plate Size
4in x 4-1/2in
Wheel/Tread Material
Polyurethane
System of Measurement
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-ALB 200K-14
Zoro #
G3581932
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
4in x 4-1/2in
Wheel Width
2 in
Mounting Height
9 7/16 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-1/4 in
Wheel Dia.
8 in
Overall Height
9-1/2in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in

Details

Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Wheel Color
Brown
Wheel/Tread Material
Polyurethane
System of Measurement
Inch
Caster Temp. Range Available
Yes
Includes Thread Guards
No
Item
Swivel Caster
Number of Mounting Holes
4
Frame Finish
Zinc Plated
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Load Rating Range
Medium-Duty
Load Rating
1500 lb
Caster Sub-Type
Swivel
Number of Wheels
1
Non-Marking
Yes
Caster Plate Hole Pattern
B
Caster Brake Type
No Brake
Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Aluminum
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. ALB 200/20K
Wheel/Tread Hardness Rating
Firm
Standards
DIN EN 12532
Extended Lead
No
Tread Shape
Crown
Caster Brake Included
No
Features
Push/Pull Force Reduction
Swivel Construction
Kingpinless
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Silver
Wheel/Tread Color
Tan
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P25 Series
Load Capacity
1500 lb
Caster Mounting Type
Plate
Tread
Standard
Accessories
Optional: P-DL25-14 (Directional Lock)
Tread Color
Brown
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,500 lb
Compatible With
ALB 200/20K
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Easy Turn, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
