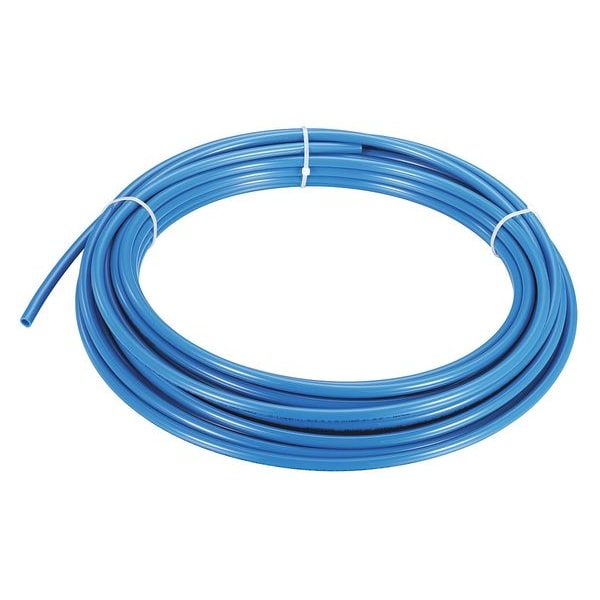

Tubing, 1/4" OD, Nylon, Blue, 100 Ft

product price: $41.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Material Nylon
  • Tube Hardness Shore D: 60
  • Inside Dia. 11/64 in
  • Outside Dia. 1/4 in
  • Wall Thickness 1 mm
See all product information

Product Information

Dimensions

Inside Dia. 11/64 in
Outside Dia. 1/4 in
Tube Length 100 ft
Outside Diameter 1/4 in
Outside Diameter Tolerance +0.002 to -0.004 in
Inside Diameter 3/16 in
Overall Length 100 ft

Details

Tube Material Nylon
Tube Hardness Shore D: 60
Wall Thickness 1 mm
Max. Pressure 400 psi @ 68 Degrees F
Tube Color Blue
Vacuum Rating 28 in Hg
Tolerance +0.002 in to -0.004 in
Temp. Range -4 Degrees F to 175 Degrees F
Burst Pressure 795 psi
Item Tubing
Color Blue
Material Nylon
Jacket Material No Jacket
Peristaltic Pump Compatible No
Industry Application Automation
System of Measurement Inch
Vacuum Rated Vacuum Rated
Reinforcement Not Reinforced
Tube Form Coil
Clarity Opaque
Maximum Vacuum Pressure 28 in Hg
Flexibility Semi-Flexible
Flow Application Automation Machines, Conveyors, Packaging, Robotics
Jacket Color No Jacket
Minimum Operating Temperature -40 Degrees F
Resistance Properties Chemical Resistant, Humidity Resistant
Autoclavable No
Fitting Compatibility Compression, Push-to-Connect
Hardness Shore D 60
Application Air
Maximum Operating Pressure 400 psi @ 68 Degrees F
Stripe Color No Stripe
Maximum Operating Temperature 200 Degrees F

Description

Tubing, Application Air, Color Blue, Hardness Shore D 60, Inside Diameter 3/16 in, Jacket Color No Jacket, Jacket Material No Jacket, Material Nylon, Material Trade Name Not Applicable, Material Trade Number Not Applicable, Maximum Operating Pressure 400 psi @ 68 Degrees F, Maximum Operating Temperature 200 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 1/4 in, Overall Length 100 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable
