  11. Tubing, 1/4" OD, Nylon, Green, 100 Ft
Shop All Nylon Tubing
Zoro Select

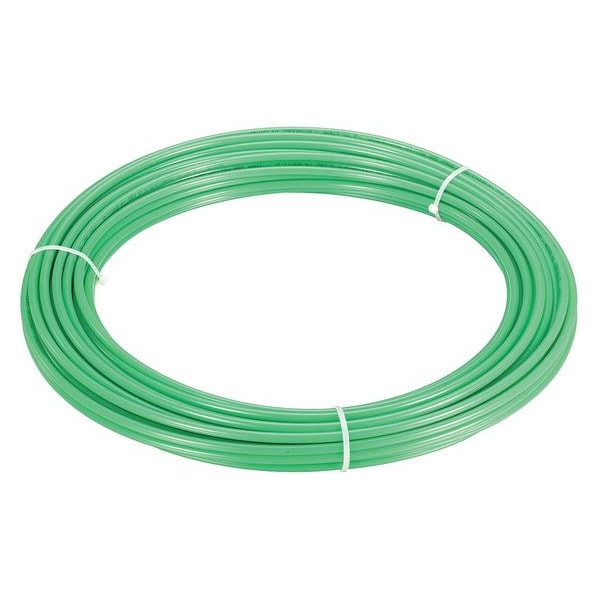

Tubing, 1/4" OD, Nylon, Green, 100 Ft

original price: $38.29
14% off
new price: $32.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Material Nylon
  • Tube Hardness Shore D: 60
  • Inside Dia. 11/64 in
  • Outside Dia. 1/4 in
  • Wall Thickness 0.03 in
See all product information

Product Information

Dimensions

Inside Dia. 11/64 in
Outside Dia. 1/4 in
Tube Length 100 ft
Inside Diameter 3/16 in
Overall Length 100 ft
Outside Diameter Tolerance +0.002 to -0.004 in
Outside Diameter 1/4 in

Details

Tube Material Nylon
Tube Hardness Shore D: 60
Wall Thickness 0.03 in
Max. Pressure 400 psi @ 68 Degrees F
Tube Color Green
Burst Pressure 795 psi
Temp. Range -4 Degrees F to 175 Degrees F
Vacuum Rating 28 in Hg
Tolerance +0.002 in to -0.004 in
Item Tubing
Material Nylon
Color Green
Application Air
Maximum Operating Temperature 200 Degrees F
Vacuum Rated Vacuum Rated
Resistance Properties Chemical Resistant, Humidity Resistant
Jacket Color No Jacket
Stripe Color No Stripe
Flexibility Semi-Flexible
Jacket Material No Jacket
System of Measurement Inch
Reinforcement Not Reinforced
Minimum Operating Temperature -40 Degrees F
Clarity Opaque
Maximum Vacuum Pressure 28 in Hg
Flow Application Automation Machines, Conveyors, Packaging, Robotics
Autoclavable No
Peristaltic Pump Compatible No
Tube Form Coil
Industry Application Automation
Maximum Operating Pressure 400 psi @ 68 Degrees F
Hardness Shore D 60
Fitting Compatibility Compression, Push-to-Connect

Description

Tubing, Application Air, Color Green, Hardness Shore D 60, Inside Diameter 3/16 in, Jacket Color No Jacket, Jacket Material No Jacket, Material Nylon, Material Trade Name Not Applicable, Material Trade Number Not Applicable, Maximum Operating Pressure 400 psi @ 68 Degrees F, Maximum Operating Temperature 200 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 1/4 in, Overall Length 100 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable
