  11. Tubing, Nylon, 100 ft, Shore D: 68, 0.170
Shop All Nylon Tubing
Zoro Select

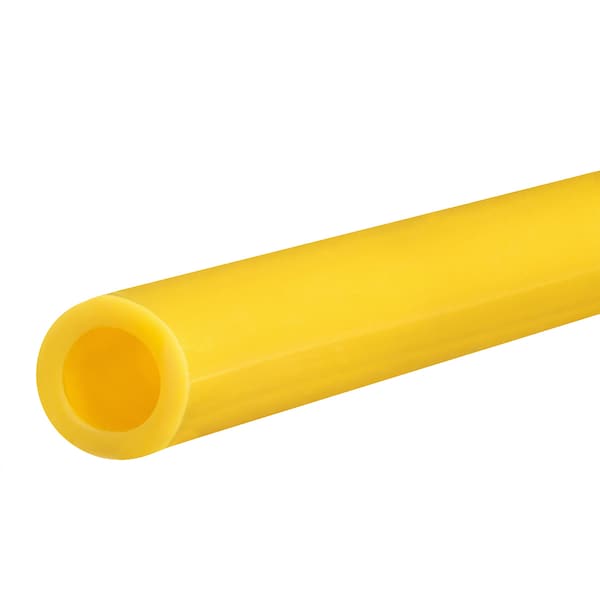

Tubing, Nylon, 100 ft, Shore D: 68, 0.170

product price: $72.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Material Nylon
  • Tube Hardness Shore D: 68
  • Inside Dia. 17/100 in
  • Outside Dia. 1/4 in
  • Wall Thickness 0.04 in
See all product information

Product Information

Dimensions

Inside Dia. 17/100 in
Outside Dia. 1/4 in
Tube Length 100 ft
Length 100 ft
Tube Bend Radius 1"
Bend Radius 1 in
Outside Diameter 1/4 in

Details

Tube Material Nylon
Tube Hardness Shore D: 68
Wall Thickness 0.04 in
Max. Pressure 500 psi
Tube Color Yellow
Color Yellow
Standards FMVSS 106, SAE J844 A
Item Tubing
Temp. Range -40 Degrees F to 240 Degrees F
Durometer 68D
Grade D.O.T.
Reinforcement Not Reinforced
Maximum Operating Temperature 240 Degrees F
Jacket Material No Jacket
Minimum Operating Temperature -40 Degrees F
Air Brake Type Type A
Jacket Color No Jacket
Temperature Range -40 Degrees to 240 Degrees F

Description

Tubing, Air Brake Type Type A, Application Not Applicable, Bend Radius 1 in, Color Yellow, Maximum Operating Temperature 240 Degrees F, Jacket Color No Jacket, Jacket Material No Jacket, Length 100 ft, Outside Diameter 1/4 in, Reinforcement Not Reinforced, Standards FMVSS 106, SAE J844 A
