Shop All Polyurethane Tubing
Zoro Select

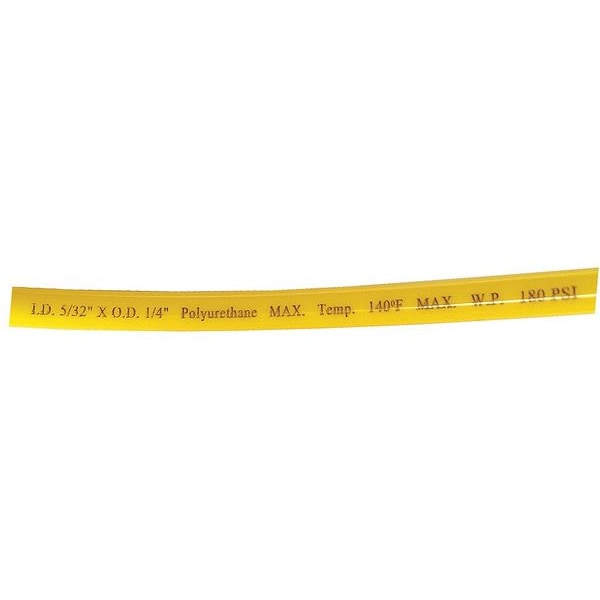

Tubing, Poly, 1/4 In, 180 PSI, 100 Ft, Yellow

original price: $25.03
9% off
new price: $22.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Material Polyurethane
  • Tube Hardness Shore A: 98
  • Inside Dia. 5/32 in
  • Outside Dia. 1/4 in
  • Wall Thickness 0.05 in
See all product information

Product Information

Dimensions

Inside Dia. 5/32 in
Outside Dia. 1/4 in
Tube Length 100 ft
Bend Radius 1 in
Overall Length 100 ft
Outside Diameter Tolerance +/-0.004 in
Inside Diameter 5/32 in
Outside Diameter 1/4 in

Details

Tube Material Polyurethane
Tube Hardness Shore A: 98
Wall Thickness 0.05 in
Max. Pressure 180 PSI
Tube Color Yellow
Item Tubing
Burst Pressure 540 psi
Tolerance +/-0.004 in
Temp. Range -68 Degrees to 140 Degrees F
Type Standard
Vacuum Rating 28 in Hg
Material Polyurethane
Color Yellow
Application Air, Water
Flexibility Flexible
Tube Form Coil
Minimum Operating Temperature -68 Degrees F
Jacket Material No Jacket
Hardness Shore A 98
Maximum Operating Pressure 180 psi
Reinforcement Not Reinforced
Maximum Vacuum Pressure 28 in Hg
Features Non Marking, Resist Algae Growth, Standard
Flow Application Air and Water Lines, Carwash and Painting Equipment, Robotics
Autoclavable Yes
Jacket Color No Jacket
Fitting Compatibility Push-to-Connect
Clarity Opaque
Beverage, Food, and Water Compatibility Non-Potable Water
System of Measurement Inch
Vacuum Rated Vacuum Rated
Peristaltic Pump Compatible No
Maximum Operating Temperature 140 Degrees F
Resistance Properties Abrasion Resistant, Wear Resistant
Stripe Color No Stripe
Food and Beverage Compatibility Non-Potable Water

Description

Tubing, Application Air, Water, Color Yellow, Hardness Shore A 98, Inside Diameter 5/32 in, Jacket Color No Jacket, Jacket Material No Jacket, Material Polyurethane, Material Trade Name Not Applicable, Material Trade Number Not Applicable, Maximum Operating Pressure 180 psi, Maximum Operating Temperature 140 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 1/4 in, Overall Length 100 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable
