Ring Terminal, 5/16 in Stud Size, 10 AWG, 600 V, Vinyl Insulated, Yellow, Crimp Termination Only
Mfr # MV10-516R/SK
Zoro # G5779627
product price:Â
$
266.99
/pk 500, $0.53/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MV10-516R/SK
- Zoro #
- G5779627
- UPC #
- 00054007019268
- Country of Origin
- United States

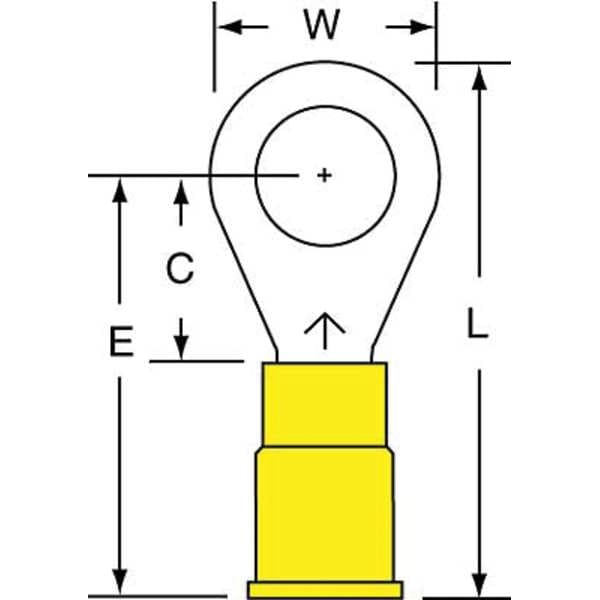

Dimensions
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 12 AWG
- Stud Size
- 5/16 in
- Tongue Width - Wire Connector
- 0.53 in
- Overall Length
- 1.26 in
- Connection Width
- 0.315 in
- Tongue Width
- 0.53 in
- Wire Rope Length
- 1.26 in
- Barrel Length
- 0.25 in
- Tongue Thickness
- 0.04 in
- Barrel Outside Diameter
- 0.25 in
- Barrel Inside Diameter
- 0.14 in
- Length
- 1.26 in
Description
Ring Terminal, Insulation Color Yellow, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.53 in, Contact Finish Tin, Contact Material Copper, Standards CSA, RoHS 2011/65/EU, UL, Barrel Inside Diameter 0.14 in, Barrel Length 0.25 in, Barrel Outside Diameter 0.25 in, Barrel Style Brazed, Hole Spacing 0.27 in, Minimum Operating Temperature -40 Degrees F
