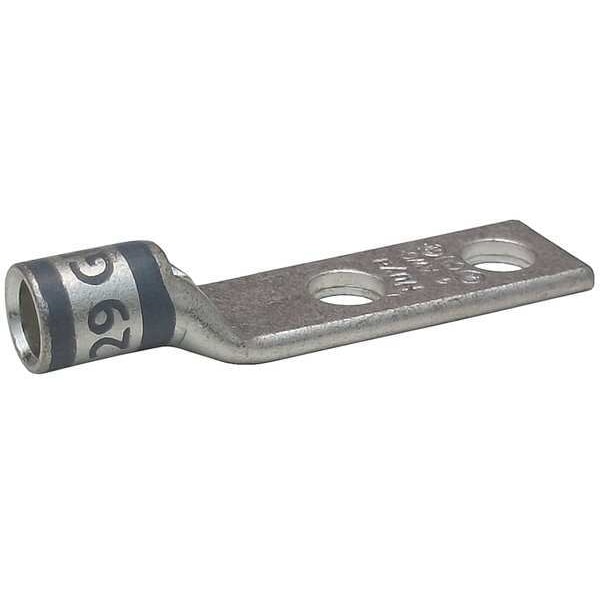

Two-Hole Compression Lug, 4 AWG Max, #10 Stud, Short Barrel, Copper, Gray
Mfr # 24D015
Zoro # G2933047
product price:Â $2.45
/ea
Sold in multiples of 5 for $12.25
Key Features
For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
#10
Material
Copper
Barrel Size
Short
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24D015
- Zoro #
- G2933047
- UPC #
- 190735434253
- Country of Origin
- China
Dimensions
- For Wire Size
- 4 AWG
- For Stud Size
- #10
- Barrel Size
- Short
- Tongue Width
- 0.55 in
- Length
- 2.23 in
- Width
- 0.55 in
- Cable Size
- 4 AWG
- Barrel Length
- Short
- Length (Straight Wireway)
- 2.23 in
- Hole Size
- 0.205 in
- Tongue Length
- 1.17 in
- Barrel Inside Diameter
- 0.28 in
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Strip Length
- 7/8 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Overall Width
- 0.55 in
- Overall Length
- 2.23 in
- Barrel Outside Diameter
- 0.38 in
- Tongue Thickness
- 0.09 in
Description
Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Gray, Die Code 29, Tongue Angle Straight, Tongue Width 0.55 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
