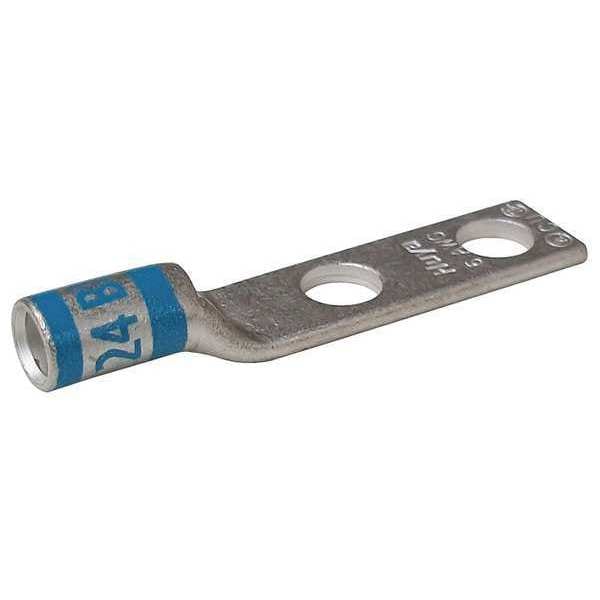

Two-Hole Compression Lug, 6 AWG Max, 1/2 in Stud, Short Barrel, Copper, Blue

  • Mfr # 24D014

  • Zoro # G5206196

product price:  $2.59
/ea

Key Features

For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24D014
Zoro #
G5206196
UPC #
190735434246
Country of Origin
China

Dimensions

For Wire Size
6 AWG
For Stud Size
1/2 in
Barrel Size
Short
Tongue Width
0.69 in
Cable Size
6 AWG
Width
0.81"
Length
3.89"
Barrel Length
Short
Length (Straight Wireway)
3.89 in
Hole Size
0.53 in
Strip Length
7/8 in
For Stranded Copper Wire Size - Minimum
6 AWG
Overall Length
3.89 in
For Stranded Copper Wire Size - Maximum
6 AWG
Overall Width
0.69 in
Tongue Length
2.83 in
Tongue Thickness
0.07 in
Barrel Inside Diameter
0.22 in
Barrel Outside Diameter
0.31 in
Wire Rope Length
3.89 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
24
Color Code
Blue
Standards
UL Listed
Connector Type
Straight Barrel
Hole Center to End
0.53 in
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Hole Center to Center
1.75 in
Peep Hole
Yes
Tongue Style
Standard
Contact Finish
Tin
RoHS Compliant
Yes
Termination Style
Crimp
Current
95 A
For Wire Type
Stranded
Maximum Voltage
35 kV
Barrel Style
Chamfered
Seam Style
Seamless
Maximum Operating Temperature
300 Degrees F
Special Features
Corrosion Resistant, High-Conductivity Construction
Number of Holes
2

Description

Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Blue, Die Code 24, Tongue Angle Straight, Tongue Width 0.69 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed
