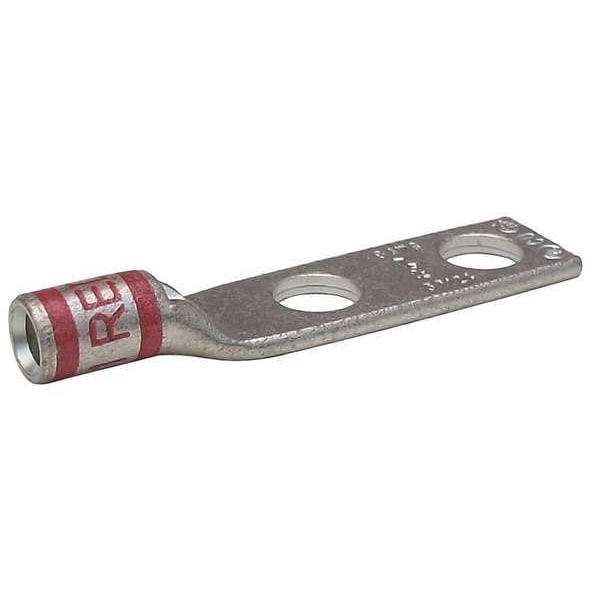

Two-Hole Compression Lug, 8 AWG Max, 1/2 in Stud, Short Barrel, Copper, Red
Mfr # 24D012
Zoro # G5206433
product price:Â $2.59
/eaKey Features
For Wire Size
8 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
24D012
Zoro #
G5206433
UPC #
190735434222
Country of Origin
China
Dimensions
For Wire Size
8 AWG
For Stud Size
1/2 in
Barrel Size
Short
Tongue Width
0.69 in
Width
0.83"
Length
3.52"
Cable Size
8 AWG
Barrel Length
Short
Length (Straight Wireway)
3.52 in
Overall Length
3.52 in
Strip Length
1/2 in
For Stranded Copper Wire Size - Minimum
8 AWG
Barrel Inside Diameter
0.18 in
Barrel Outside Diameter
0.28 in
For Stranded Copper Wire Size - Maximum
8 AWG
Overall Width
0.69 in
Tongue Length
2.83 in
Tongue Thickness
0.07 in
Hole Size
0.53 in
Description
Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Red, Die Code 21, Tongue Angle Straight, Tongue Width 0.69 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 2
