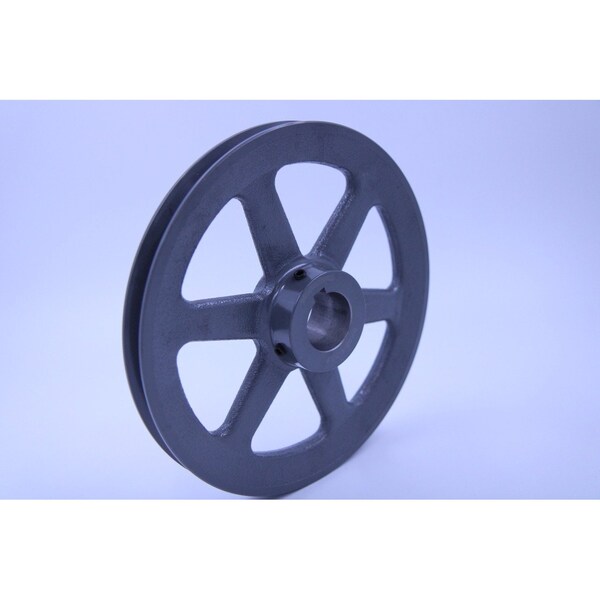

V-Belt Pulley, Cast Iron, Fixed
- Mfr # BK190X1-3/16
- Zoro # G310987104
product price:Â
$
138.99
/ea
Free Shipping & Returns
Key Features
Number of Grooves
1
Face Width
0.88 in
Overall Width
1 9/16 in
A Pitch Diameter
18 in
Bore Type
Fixed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BK190X1-3/16
- Zoro #
- G310987104
- UPC #
- 00195057091955
- Country of Origin
- China
- Number of Grooves
- 1
- Bore Type
- Fixed
- Number of Set Screws
- 1
- Material
- Cast Iron
- Material Fabrication
- Cast
- Item
- V-Belt Pulley
- Standards
- ISO 9001:2015 Certification, REACH Certification, RoHS Certification
- Includes
- Set Screw
- Weight
- 21.1 lb
- For V-Belt Type
- Cogged
- Pulley Construction
- Spoked
- Pulley Industry Number
- BK190
- Hub Type
- Single-Sided
- Hub Projection
- 0.656 in
- Shell Material
- Cast Iron
- Traction Material
- Cast Iron
Dimensions
- Face Width
- 0.88 in
- Overall Width
- 1 9/16 in
- A Pitch Diameter
- 18 in
- For Belt Trade Size
- 4L, 5L, A, AX, B, BX
- Bore Diameter
- 1 3/16 in
- Outside Diameter
- 18.75 in
- B Pitch Diameter
- 18.4 in
- Hub Diameter
- 2 3/8 in
- Pitch Diameter
- 18 in (4L, A), 18.4 in (5L, B)
- 5L Pitch Diameter
- 18.4 in
- 4L Pitch Diameter
- 18 in
- AX Pitch Diameter
- 18 in
- BX Pitch Diameter
- 18.4 in
- Maximum Bore Diameter
- 1 11/16 in
- Length through Bore
- 1 15/32 in
- Keyway Width
- 1/4 in
- Keyway Depth
- 1/8 in
Description
V-Belt Pulley, 3L Pitch Diameter Not Applicable, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 18 in, 5L Pitch Diameter 18.4 in, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 18 in, AX Pitch Diameter 18 in, B Pitch Diameter 18.4 in, BX Pitch Diameter 18.4 in, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, Bore Diameter 1 3/16 in, Bore Type Fixed
