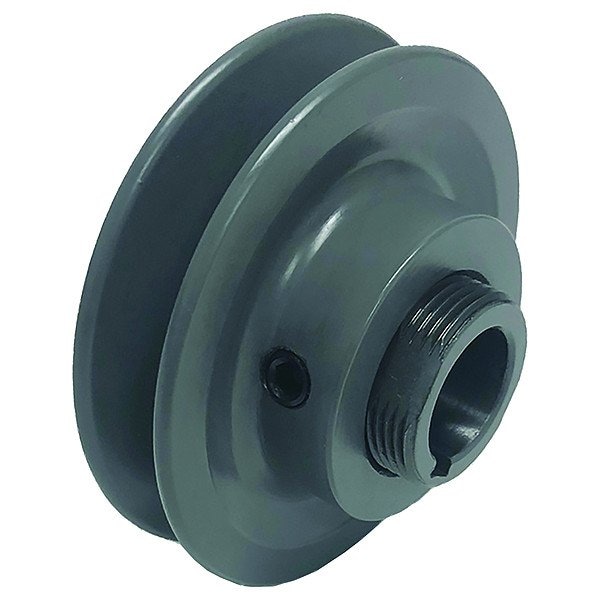

Variable Pitch V-Belt Pulley

  • Mfr # 1VL34X3/4

  • Zoro # G710987100

product price:  $18.59
/ea

Key Features

Number of Grooves
1
Bore Diameter
3/4 in
Outside Diameter
3.15 in
Material Fabrication
Cast
Standards
REACH Certification, RoHS Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1VL34X3/4
Zoro #
G710987100
UPC #
00195057185333
Country of Origin
China

Dimensions

Bore Diameter
3/4 in
Outside Diameter
3.15 in
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
Overall Width
1 11/16 in
3L Pitch Diameter (Minimum)
1.7 in
B Pitch Diameter (Maximum)
3.2 in
Maximum Pitch Diameter
2.5 in (3L), 2.9 in (4L, A), 3.2 in (5L, B)
A Pitch Diameter (Minimum)
1.9 in
BX Pitch Diameter (Maximum)
3.2 in
AX Pitch Diameter (Minimum)
1.9 in
3L Pitch Diameter (Maximum)
2.5 in
A Pitch Diameter (Maximum)
2.9 in
BX Pitch Diameter (Minimum)
2.4 in
B Pitch Diameter (Minimum)
2.4 in
5L Pitch Diameter (Minimum)
2.4 in
5L Pitch Diameter (Maximum)
3.2 in
4L Pitch Diameter (Maximum)
2.9 in
4L Pitch Diameter (Minimum)
1.9 in
AX Pitch Diameter (Maximum)
2.9 in
Minimum Face Width
0.719 in
Keyway Width
3/16 in
Keyway Depth
3/32 in
Length through Bore
1 11/16 in
Maximum Face Width
1.078 in
Minimum Pitch Diameter
1.7 in (3L), 1.9 in (4L, A), 2.4 in (5L, B)

Details

Number of Grooves
1
Material Fabrication
Cast
Standards
REACH Certification, RoHS Compliant
Material
Cast Iron
Item
Variable Pitch V-Belt Pulley
Weight
1.1 lb
For V-Belt Type
Wedge, Cogged
Pulley Construction
Plain
Number of Turns
4 (3L); 5 (4L, A); 5 (5L, B)
Pulley Industry Number
1VL34

Description

Variable Pitch V-Belt Pulley, Bore Diameter 3/4 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 2.5 in (3L), 2.9 in (4L, A), 3.2 in (5L, B), Number of Grooves 1, Outside Diameter 3.15 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) 2.5 in, 3L Pitch Diameter (Minimum) 1.7 in, 3V Pitch Diameter (Maximum) Not Applicable
