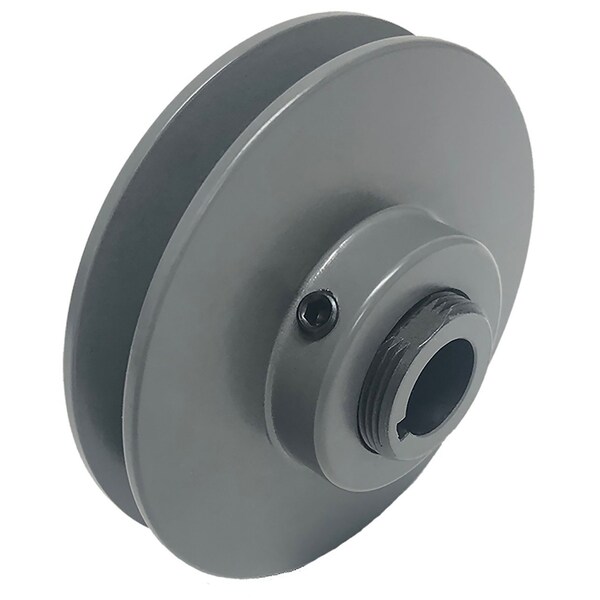

Variable Pitch V-Belt Pulley
- Mfr # 1VP50X7/8
- Zoro # G210986962
product price:Â
$
37.79
/ea
Key Features
Number of Grooves
1
Standards
REACH Certification, RoHS Compliant
Bore Diameter
7/8 in
Weight
2.9 lb
Outside Diameter
4.75 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1VP50X7/8
- Zoro #
- G210986962
- UPC #
- 00195057185760
- Country of Origin
- China
- Number of Grooves
- 1
- Standards
- REACH Certification, RoHS Compliant
- Item
- Variable Pitch V-Belt Pulley
- Weight
- 2.9 lb
- Material
- Cast Iron
- Material Fabrication
- Cast
- Number of Turns
- 4 (3L); 5 (4L, A); 6 (5L, B)
- Pulley Construction
- Plain
- For V-Belt Type
- Wedge, Cogged
- Pulley Industry Number
- 1VP50
- Shell Material
- Cast Iron
Dimensions
- Bore Diameter
- 7/8 in
- Outside Diameter
- 4.75 in
- For Belt Trade Size
- 3L, 4L, 5L, A, AX, B, BX
- Overall Width
- 1 7/8 in
- 4L Pitch Diameter (Minimum)
- 3.4 in
- 5L Pitch Diameter (Maximum)
- 4.7 in
- AX Pitch Diameter (Maximum)
- 4.4 in
- A Pitch Diameter (Maximum)
- 4.4 in
- B Pitch Diameter (Minimum)
- 3.7 in
- AX Pitch Diameter (Minimum)
- 3.4 in
- 4L Pitch Diameter (Maximum)
- 4.4 in
- BX Pitch Diameter (Minimum)
- 3.7 in
- B Pitch Diameter (Maximum)
- 4.7 in
- BX Pitch Diameter (Maximum)
- 4.7 in
- 3L Pitch Diameter (Maximum)
- 4.1 in
- Maximum Pitch Diameter
- 4.1 in (3L), 4.4 in (4L, A), 4.7 in (5L, B)
- A Pitch Diameter (Minimum)
- 3.4 in
- 5L Pitch Diameter (Minimum)
- 3.7 in
- 3L Pitch Diameter (Minimum)
- 3.3 in
- Minimum Pitch Diameter
- 3.3 in (3L), 3.4 in (4L, A), 3.7 in (5L, B)
- Keyway Depth
- 3/32 in
- Length through Bore
- 1 7/8 in
- Keyway Width
- 3/16 in
- Maximum Face Width
- 1.125 in
- Minimum Face Width
- 0.75 in
Description
Variable Pitch V-Belt Pulley, Bore Diameter 7/8 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 4.1 in (3L), 4.4 in (4L, A), 4.7 in (5L, B), Number of Grooves 1, Outside Diameter 4.75 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) 4.1 in, 3L Pitch Diameter (Minimum) 3.3 in, 3V Pitch Diameter (Maximum) Not Applicable
