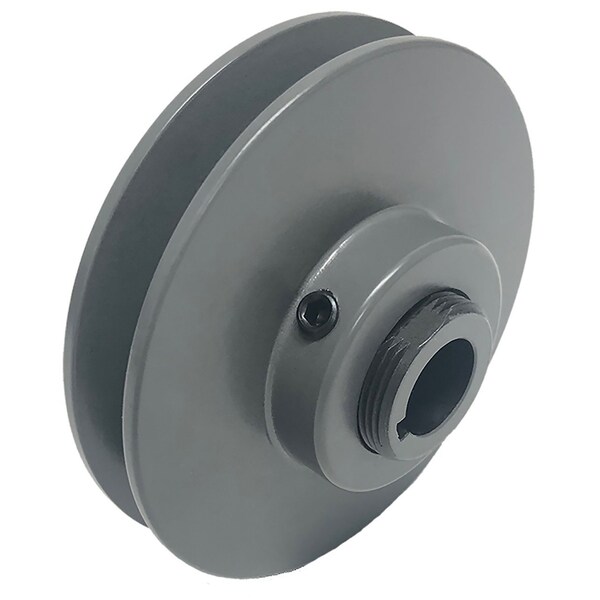

Zoro Select Variable Pitch V-Belt Pulley 1VP65X1-1/8 - main

Variable Pitch V-Belt Pulley

  • Mfr # 1VP65X1-1/8

  • Zoro # G010986933

product price: $65.49
/ea

Key Features

Number of Grooves
1
Material
Cast Iron
Outside Diameter
6.5 in
Standards
REACH Certification, RoHS Compliant
For Belt Trade Size
4L, 5L, 5V, 5VX, A, AX, B, BX
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1VP65X1-1/8
Zoro #
G010986933
UPC #
00195057185968
Country of Origin
China

Dimensions

Outside Diameter
6.5 in
For Belt Trade Size
4L, 5L, 5V, 5VX, A, AX, B, BX
Overall Width
1 11/16 in
Bore Diameter
1 1/8 in
5V Pitch Diameter (Maximum)
6.4 in
Maximum Pitch Diameter
5.7 in (4L, A), 6 in (5L, B), 6.4 in (5V)
AX Pitch Diameter (Minimum)
4.7 in
A Pitch Diameter (Minimum)
4.7 in
5VX Pitch Diameter (Maximum)
6.4 in
B Pitch Diameter (Maximum)
6 in
A Pitch Diameter (Maximum)
5.7 in
5L Pitch Diameter (Minimum)
4.8 in
4L Pitch Diameter (Minimum)
4.7 in
5VX Pitch Diameter (Minimum)
5.2 in
B Pitch Diameter (Minimum)
4.8 in
AX Pitch Diameter (Maximum)
5.7 in
5L Pitch Diameter (Maximum)
6 in
BX Pitch Diameter (Maximum)
6 in
4L Pitch Diameter (Maximum)
5.7 in
5V Pitch Diameter (Minimum)
5.2 in
BX Pitch Diameter (Minimum)
4.8 in
Minimum Face Width
0.875 in
Keyway Depth
1/8 in
Length through Bore
1 21/32 in
Keyway Width
1/4 in
Minimum Pitch Diameter
4.7 in (4L, A), 4.8 in (5L, B), 5.2 in (5V)
Maximum Face Width
1.25 in

Description

Variable Pitch V-Belt Pulley, Bore Diameter 1 1/8 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 4L, 5L, 5V, 5VX, A, AX, B, BX, For V-Belt Type Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 5.7 in (4L, A), 6 in (5L, B), 6.4 in (5V), Number of Grooves 1, Outside Diameter 6.5 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) Not Applicable, 3L Pitch Diameter (Minimum) Not Applicable, 3V Pitch Diameter (Maximum) Not Applicable
