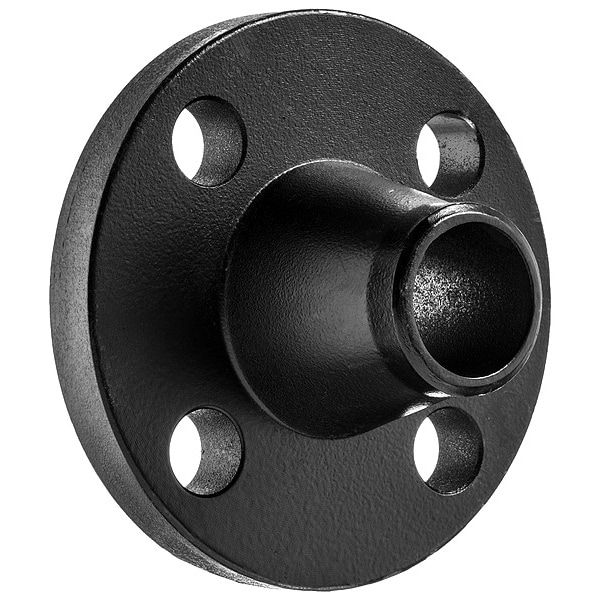

Weld Neck Flange Pipe Flange, 1" Pipe, Flanged x Weld Neck, Steel, Class 600
Mfr # BULK-PF-419
Zoro # G000424728
product price: $67.19
/eaKey Features
Specific Fitting Shape
Weld Neck Flange
Fitting Connection Type
Flanged x Weld Neck
Pipe Fitting Material
Steel
Pipe Size (Fittings)
1"
Class
Class 600
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BULK-PF-419
Zoro #
G000424728
UPC #
193005131104
Country of Origin
China
Dimensions
Pipe Size (Fittings)
1"
Flange Thickness
11/16 in
Flange Outside Diameter
4 7/8 in
Nominal Pipe Size
1 in
Overall Length
4 7/8 in
Bolt Hole Diameter
5/8 in
Details
Specific Fitting Shape
Weld Neck Flange
Fitting Connection Type
Flanged x Weld Neck
Pipe Fitting Material
Steel
Class
Class 600
Item
Pipe Flange
Standards
ASME B16.5, ASTM A105
Max. Steam Pressure
1,450 psi
Temp. Range
80 Degrees to 780 Degrees F
Color
Black
Low Lead Compliance Level
Not Compliant
Application
Air, Natural Gas, Non-Potable Water, Oil, Steam
Connection Surface
Raised Face
Number of Bolt Holes
4
Maximum Operating Pressure
1,450 psi
For Pipe Schedule
80
Finish/Coating
Black Coated
Description
Flange, Raised, 1 in Nominal Pipe Size, Flanged x Weld Neck, 4 7/8 in Flange Outside Diameter, 11/16 in Flange Thickness, 4 7/8 in Overall Length, Steel, Not Applicable, Class Class 600, For Pipe Schedule Schedule 80, 1,450 psi @ 72 Degrees F Maximum Operating Pressure, 1,450 psi Max. Steam Pressure, 80 Degrees to 780 Degrees F, Number of Bolt Holes 4, 3 1/2 in Bolt Circle Diameter, 5/8 in Bolt Hole Diameter
