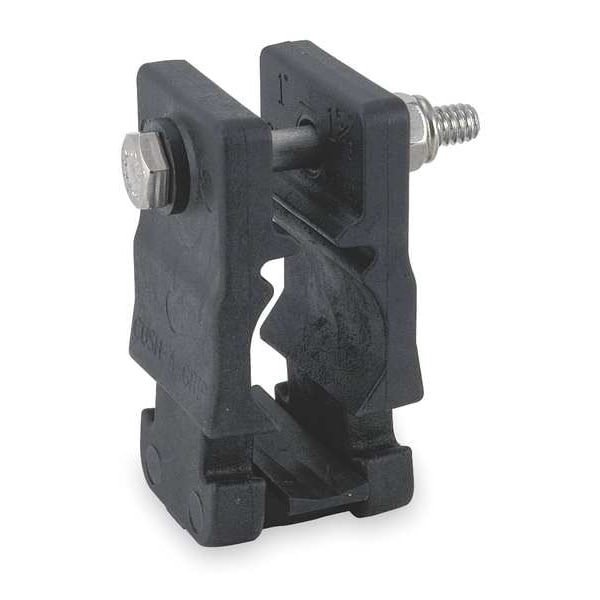

MultiGripClamp, StrutMounted, PipeS 3/4 In

  • Mfr # CG-30

  • Zoro # G1777492

product price:  $5.15
/ea

Key Features

Material
Thermoplastic Elastomer
Pipe Size (In.)
3/4 in
Max. Load (Lb.)
500 lb
Type
Strut Mounted
Height (In.)
1 13/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CG-30
Zoro #
G1777492
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size (In.)
3/4 in
Height (In.)
1 13/16 in
Width (In.)
1 7/16 in
Min. Hose Outside Dia. (In.)
1 1/8 in
Thread Size (In.)
1/4
Bolt Size (In.)
2
Pad Size (In.)
1/2 x 1-5/8
Tube Size (In.)
7/8 in, 1 in, 1 1/8 in
Overall Width
1 2/5 in
For Strut Channel Width
1 5/8 in
Overall Height
1 4/5 in
For Tube Outside Diameter
4/5 in, 1 in, 1 1/5 in
For Copper Tube Size
4/5 in, 1 in, 1 1/5 in
For Pipe Size
3/4 in
Bolt Length
2 in
For Maximum Outside Diameter
1 1/8 in
Installed Height
3 2/5 in

Details

Material
Thermoplastic Elastomer
Item
Grip-Style Strut Clamp
Max. Load (Lb.)
500 lb
Type
Strut Mounted
Description/Special Features
For Strut Mounting of Tube, Pipe or Hose
Includes
Clamp Halves, Stainless Steel Bolt and Nylon Lock Nut
Metal Detectable
Yes
Clamp Type
Grip-Style Strut Clamp
Number of Mounting Holes
0
System of Measurement
Inch
For Number of Lines
1
Includes Mounting Hardware
Yes
For Use On
Pipe, Copper Tube
Clamp Material
TPE
Clamp Bore Style
Smooth
Compatible Mfr Part Number
Wesanco Strut
Features
Non-Conducting, Maintains Thermal Barrier Protection, Multi-Environmental
Maximum Operating Temperature
380 Degrees F
For Location
Outdoor
Load Capacity
500 lb
Mount Type
Strut Clips
Cushion Material
TPE
Minimum Operating Temperature
-40 Degrees F
Bolt Material
TPE
Resistance Properties
Corrosion Resistant, Vibration Damping
Clamp Style
Grip Clamp
Series
Cush-A-Grip
Cushioned
Yes

Description

Grip-Style Strut Clamp, Clamp Bore Style Smooth, Clamp Material TPE, Clamp Material Finish Not Applicable, Clamp Type Grip-Style Strut Clamp, Compatible Mfr Part Number Wesanco Strut, Cushion Material TPE, For Copper Tube Size 4/5 in, 1 in, 1 1/5 in, For Insulation Thickness Not Applicable, For Maximum Outside Diameter 1 1/8 in, For Number of Lines 1, For Pipe Size 3/4 in, For Strut Channel Width 1 5/8 in, Included Insulation Thickness Not Applicable, Installed Height 3 2/5 in
