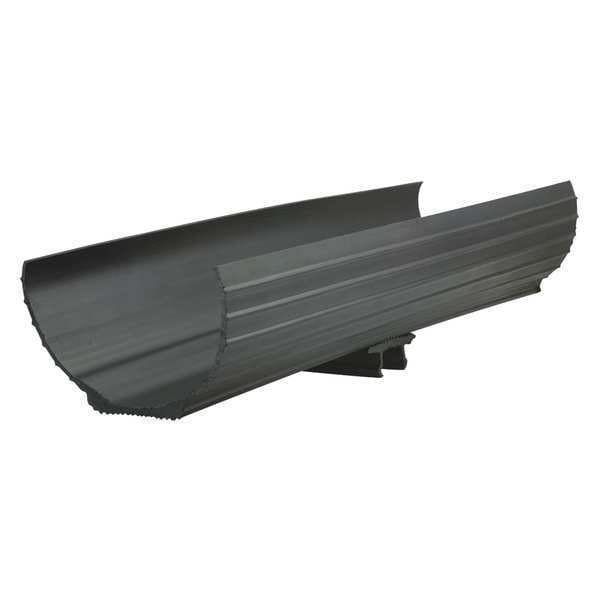

Pipe Support, 4-1/4 in. W, TPV, 12 in. L
Mfr # SW425
Zoro # G3768716
product price:Â
$
8.69
/ea
Sold in multiples of 2 for $17.38
Key Features
Material
TPV
Width
4 1/4 in
Standards and Approvals
UL94-HB1 Rated
Tube Size
2 to 2-1/2 in
Insulation OD
4 1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SW425
- Zoro #
- G3768716
- UPC #
- 840722135389
- Country of Origin
- United States
Dimensions
- Width
- 4 1/4 in
- Tube Size
- 2 to 2-1/2 in
- Insulation Thickness
- 1/2 to 1 in
- Length
- 12 in
- Pipe Size
- 2 to 2-1/2 in
- For Maximum Copper Tube Size
- 2.5 in
- Insulation Thickness Range
- 1/2 in to 1 in
- For Minimum Copper Tube Size
- 2 in
- Overall Length
- 12 in
- For Insulation Outside Diameter
- 4.3 in
- Wire Rope Length
- 12 in
Details
- Item
- Pipe Support
- Material
- TPV
- Standards and Approvals
- UL94-HB1 Rated
- Insulation OD
- 4 1/4 in
- Color
- White
- Finish
- Painted
- Type
- With Insulation Saddle System
- Max. Load (Lb.)
- 1,200 lb
- Maximum Operating Temperature
- 275 Degrees F
- Standards
- UL94-HB1
- Minimum Operating Temperature
- -50 Degrees F
- Mount Type
- Strut Channel
- Load Capacity
- 1,200 lb
Description
Pipe Support, Color White, Finish Painted, For Insulation Outside Diameter 4.3 in, For Maximum Copper Tube Size 2.5 in, For Minimum Copper Tube Size 2 in, Insulation Thickness Range 1/2 in to 1 in, Load Capacity 1,200 lb, Material TPV, Maximum Operating Temperature 275 Degrees F, Minimum Operating Temperature -50 Degrees F, Mount Type Strut Channel, Overall Length 12 in, Standards UL94-HB1
