  11. 1/2" PEX x FNPT Polymer Ball Valve Inline
Shop All Ball Valves
Zurn

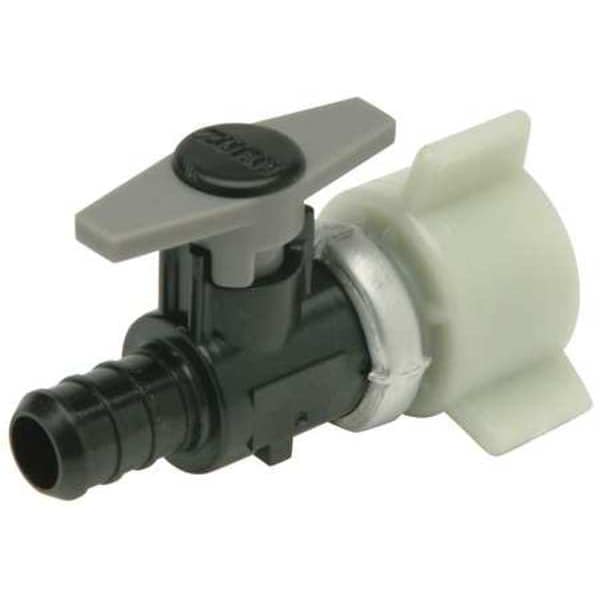

1/2" PEX x FNPT Polymer Ball Valve Inline

product price: $7.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1/2"
  • Body Material QickSert(R) CR Polymer
  • Body Style Inline
  • Tube Size 1/2"
  • Features ZurnPEX(R) QickPort(R) Manifold plastic 1/4 turn stop valve, allowing individual circuit on/off control when installed on ZurnPEX(R) QickPort(R) Manifolds
See all product information

Product Information

  • Brand Zurn
  • MFR # QPBV3X
  • Zoro # G3726195
  • UPC #
    084169679819
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1/2"
Tube Size 1/2"
Overall Length 3.26 in
Connection Size - Side 1 1/2 in
Nominal Valve Size 1/2 in
Connection Size - Side 2 1/2 in

Details

Body Material QickSert(R) CR Polymer
Body Style Inline
Features ZurnPEX(R) QickPort(R) Manifold plastic 1/4 turn stop valve, allowing individual circuit on/off control when installed on ZurnPEX(R) QickPort(R) Manifolds
Ball Valve Basic Body Material Plastic
Compliance ASME A112.18.1., ASTM F2159, ASTM F877, B137.5, CSA, NSF 61
Max. Steam Pressure 160 psi WSP
Temp. Range 33 Degrees to 200 Degrees F
Body Seal Material EPDM
Max. Pressure 250 psi CWP
Standards ASTM F877 F1807
Handle Material Plastic
Valve Structure 1-Piece
Stem Material Polymer
Hose I.D. 1/2 in
Ball Valve Product Group Manual
Seat Material EPDM
Item Ball Valve
Port Full
Stem Type 1-Piece Stem/Ball
Connection Type PEX x FNPT
Handle Type Lever
Ball Material QickSert(R) CR Polymer
Seal Material EPDM
Connection 1/2" PEX x Swivel Nut
Type PEX Swivel
Sub-Category Synthetic Ball Valves
Material of Construction Plastic
Handle - Locking Non-Locking
Ball Port Style Full Port
Color - Valve Handle Gray
3-A Standard Compliance Not Rated
Maximum Pressure - Combustible Gas Not Rated
Vented Ball Valve Non-Vented
Coefficient of Volume (Cv) Not Rated
Operating Temperature - Maximum 200 Degrees F
For Media Water
Valve Construction One-Piece
Operating Temperature - Minimum 33 Degrees F
Maximum Pressure - Operating 250 psi
Connection Type - Side 2 PEX
Valve Ways 2-Way
Valve Body Style Straight
Connection Gender - Side 2 Female
Vacuum Service Rating Not Rated
Connection Type - Side 1 NPT
Maximum Pressure - Steam 160 psi
Connection Gender - Side 1 Female
NSF Certifications for Food and Drinking Water NSF 61

Description

Manual Two-Way Ball Valve, Body Material Polymer, For Media Water, Valve Construction One-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam 160 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Rated, Ball Material Polymer, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
